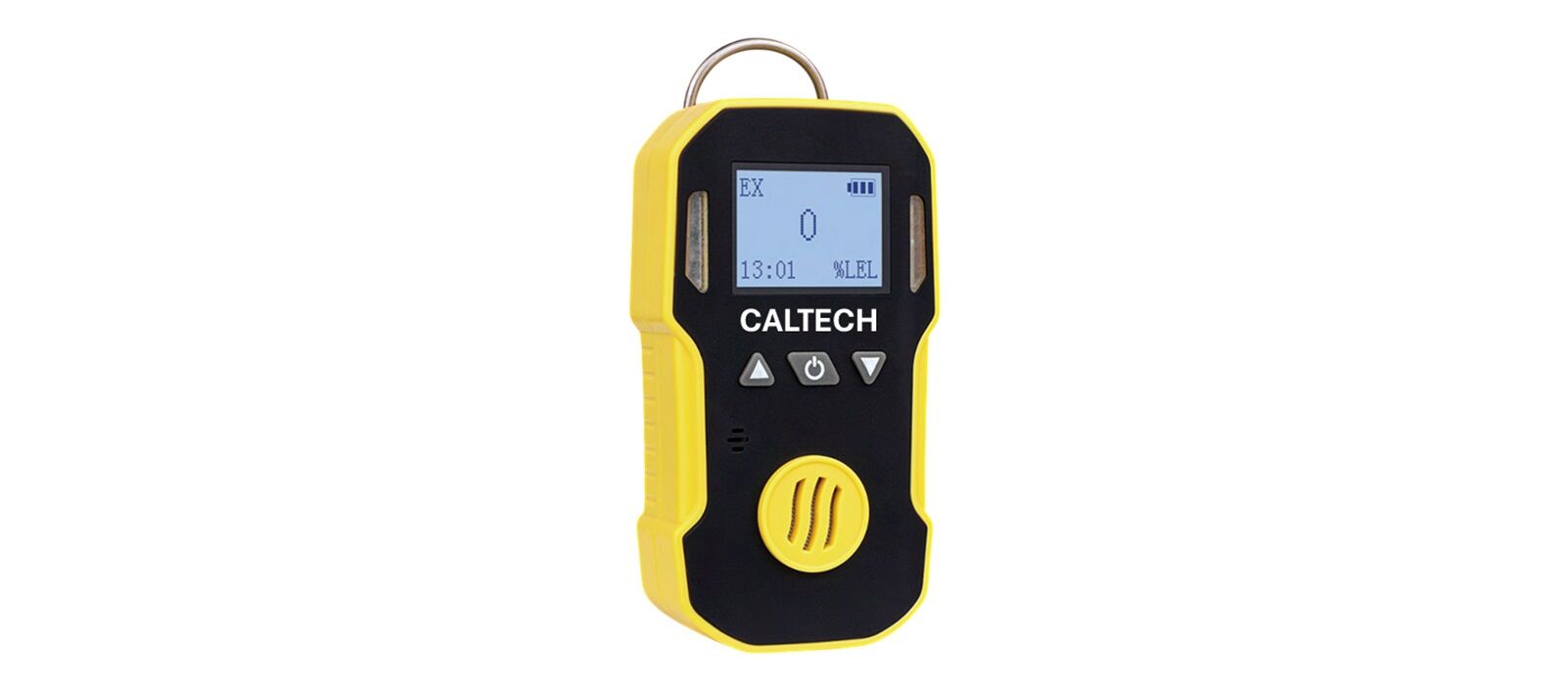

A CES 460 Portable Single Gas Detector is a compact, handheld device designed to monitor and detect the presence of a specific hazardous gas such as H2S, O2, CO, combustible gas/EX and more in the environment for personal safety.
Caltech India is leading manufacturer and supplier of CES 460 Portable Single Gas Detector. It is an economical single gas detector, adopting advanced sensor and micro control technical, quick response, high accuracy, great repeatability, the detector’ s performance is the leader grade in the industry, easy to operate.
The Portable Single Gas Detector has built in large and rechargeable lithium battery, long standby; adopt LCD screen that can indicate every technical data and gas concentration value perfectly. The shell is designed by anti slip material, small and portable. Suitable for explosion proof, toxic gas leak rescue, underground pipe, mine, metallurgy ,electric industry, chemical, tunnel and other places, prevent the accident efficiently, keep the worker safe and prevent the facilities from being destroyed.
Features:
- Detect combustible gas (EX, including CH4, C3H8, H2, etc), O2, CO or H2S by default, support more than 30 types of gas sensors, customization for detecting toxic gases (such as NO, NH3, PH3, etc) available
- Adjustable low and high alarm level
- Adjustable calibrating level
- Sampling method : natural diffusion
- High concentration protection for combustible gas
- Self test for the combustible gas sensor
- Low battery indication
- Self-adjustment function
- Visual and audible alarm with vibration
- Advanced self-examination and self-renovation function
- Password management to avoid wrong operation
- Explosive proof housing
Ordering Information:
| Portable Single Gas Detector | ||||
| Model No | CES 460/1 | CES 460/2 | CES 460/3 | CES 460/4 |
| Gas Detected | H2S | O2 | CO | combustible gas/EX |
| Range | 0-100 ppm | 0-30% vol | 0-1000 ppm | 0-100% LEL |
| Resolution | 1 ppm | 0.1% vol | 1 ppm | 1% LEL |
| Display | 1.77 inch LCD display | |||
| Accuracy | ≦ 5% F.S. | |||
| Response Time | T90<60s | |||
| Operating Environment | Temperature: -10°C~55°C; Humidity: <95%rh, no condensation | |||
| Sensor Life | 2 years (depending on working environment) | |||
| Power Supply | 3.7V rechargeable Li-ion battery | |||
| Working Time | ≧8h continuously | |||
| Charging Time | 4h～6h | |||
| Explosion-Proof Grade | Ex ib IIC T4 Gb | |||
| Protection Category | IP65 | |||
| Weight | about 130g (including battery but without accessories) | |||
| Dimension | 109mm×60mm×30mm | |||
