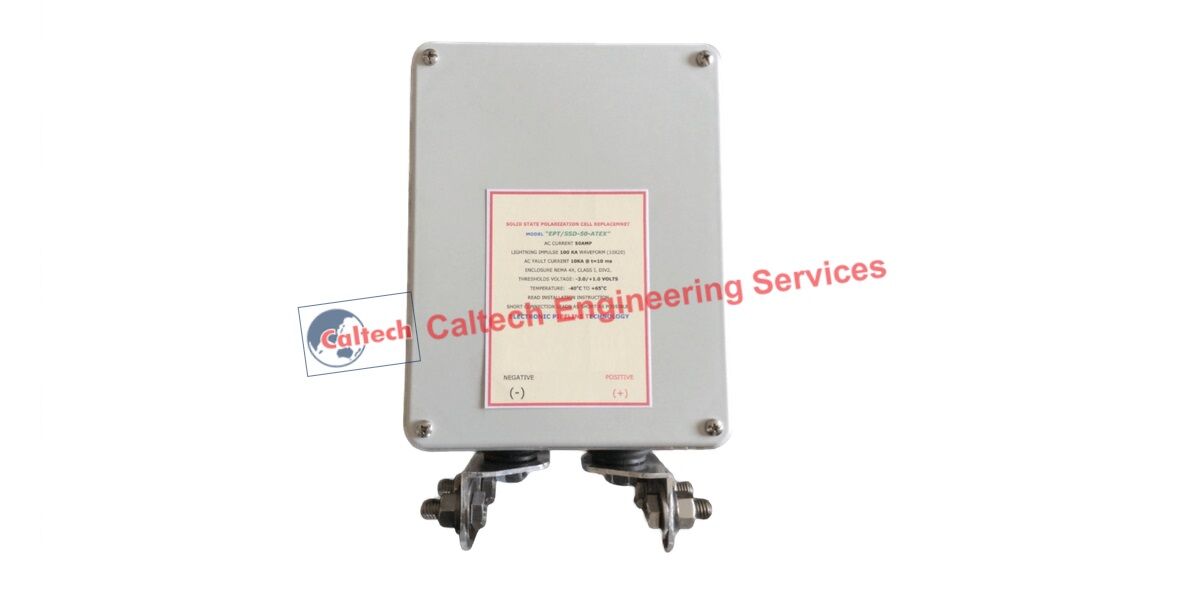

Caltech India offers PCR Solid State Device from EP-Tech Canada. Solid State Decoupler “SSD” can decouple DC Cathodic Protection Potential from AC interference and AC continuing / Grounding while CP requirement will be less. It is also known as Solid State Decoupler – Solid State Polarization Replacement Cell. A polarization cell replacement (PCR) is a solid-state device designed to simultaneously provide DC decoupling and AC continuity/grounding when used with cathodically protected structures, such as pipelines, tanks, grounding systems, cable casings.

The solid-state design eliminates the maintenance requirements and the potentially hazardous electrolytes associated with polarization cells, making the PCR are an ideal replacement for electrochemical polarization cells. The PCR has very high AC fault current and lightning surge current ratings. Polarization cell replacement (PCR) are used in conjuction with grounding cells.

• Automatically protect Flange Joint insulation
• AC voltage mitigation, very low impedance to AC current
• Block the DC to flow up to an assigned threshold voltage
• Decoupling Electric equipment grounding system
• Decoupling from utility grounding systems
• Less in Cathodic Protection requirement for the pipeline or structure
• Long term steady current (AC/DC) 50A and 100A models

Models:

• AC Fault Current rating for model “EPT/SSD-50 ATEX” 30 cycle 3.7KA at 60 HZ and 50 HZ
• AC Fault Current rating for model “EPT/SSD-50ATEX” 30 cycle 5.0KA at 60 HZ and 50 HZ
• AC Fault Current rating for model “EPT/SSD-100 ATEX” 30 cycle 10.0KA at 50 HZ and 60 HZ
• AC Fault Current rating for model “EPT/SSD-100 ATEX” 30 cycle 15.0KA at 60 HZ and 50 HZ
• AC Fault Current rating for model “EPT/SSD-100 ATEX” 30 cycle 20.0KA at 60 HZ and 50 HZ
• AC Fault Current rating for model “EPT/SSD-100 ATEX” 30 cycle 30.0KA at 60 HZ and 50 HZ
• Lightning Impulse Surge Current 100KA (8×20 and (10/350) us “Micros seconds”
• Voltage Blocking threshold (DC) -3/+1 V and -2/+2 or customer requests
• Temperature -45C to 65CTemp Code T6 (suitable for all other T code)
• Standard Environment Packing NEMA type 1, 2, 3, 4, 4X, 12 and 13
• Third Party Inspection Certificate
• Complies with UL, CSA, ANSI and ISA standards
• Certificate ATEX Directive and IECEx for EN/IEC Standard
• ATX/ UL listed (Type 6P) and rated at IP67 PER IEC 605
