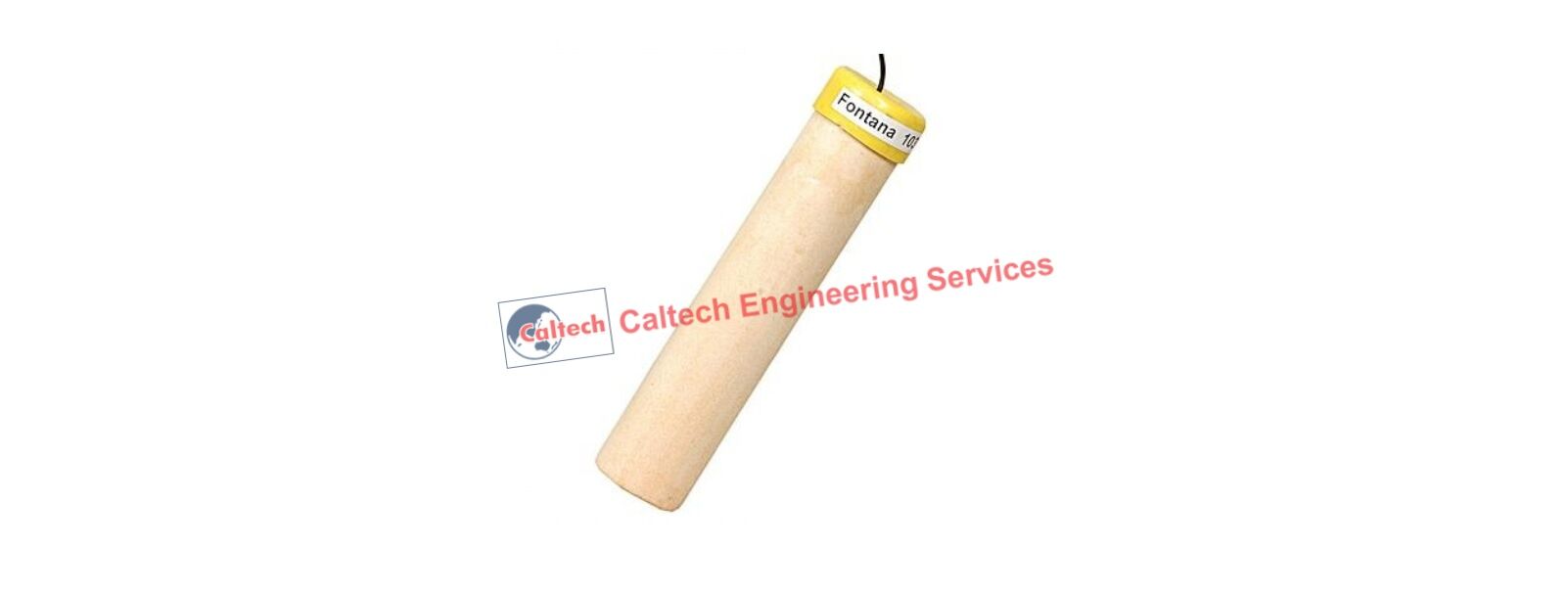

Silver Silver Chloride (Ag/AgCl) Reference Cell

Silver Silver Chloride sea water / marine service reference cell is the regular immersion reference electrode to measure electrical potentials for corrosion engineers. It is used asr permanent fresh water service electrode. These electrodes has specialty to retain and quick drain of water to show uninterrupted and accurate results all the time. The silver / silver chloride reference electrode is a widely used reference electrode because it is simple, very stable and non-toxic. It is mainly used in seawate, river water and high water content soils, mudy water.

Features

Rugged ultraviolet and chemically resistant inert ceramic tubing. Continuous moisture retaining shelf capability with preheated uniform, controlled ceramic porosity. Especially gel surrounding with silver- silver chloride wire reduces electrical resistance and no requirement of moistening. Excellent life and highest sensing area allows measurements with stability.

Long Life
Designed long life reference cell.

Applications
Direct silver chloride reference cell in sea water, fresh water, brackish water, marine and offshore with or without chlorides are supplied with 30 feet (10 mts) 4mm sq. insulated copper cable is used to connect measuring unit.

Dimensions
38mm OD x 150mm long (1.5” x 6” long)
21 Oz (600gms)

Stability
< ± 5mv

Operating Temperature
0-50º C

Certification
Each cell is tested and provided with batch test certificate.

Typical Applications
cathodic protection experts can now measure the electrical potentials for offshore, sea water, rivers, elevated water tanks, stand pipes, ground storage tanks, clarifiers, traveling screens, trash racks, submerged pipelines, locks, dams, dock.

Safety
Material safety data sheet also available on request.

Shipping
Reference cells are shipped quickly based on quantity ordered
