Multi Purpose Gauge | Master Paint Plate

Synonym : Multipurpose Gauge, Master Paint Plate, Multitester, X Cut Knife Test, Cross Hatch Adhesion, Cross Hatch Tester, Cross Hatch Paint Adhesion Test

Category: Adhesion Tester, Coating Inspection, Cross Hatch Adhesion Testers

Caltech India offers CES 243 Multi Purpose Gauge Paint Kit or Master Paint Plate a very useful gauge for cross cut adhesion testing as per ASTM D6677, ASTM D3359 Method A and ASTM D3359 method B standard. It is also known as cross cut adhesion test kit and X cut test kit. This gauge is also useful for determination of wet film thickness and also used to determine sagging properties. ASTM D3359 Test Method A is primarily intended for use at job sites while Test Method B is more suitable for use in the laboratory. Also, Test Method B is not considered suitable for films thicker than 5 mils (125μm).

One Gauge with following features:

  • Multi-purpose surface testing equipment: Cross-cut tester for the adhesion assessment of thin and thick single or multi coat systems in line with Test Method A and Test Method B. Applicator for the preparation of wedge-shaped layers of coating materials, sagging applicator for determining the sagging properties and wet-film thickness gauge for testing the film thickness.
  • 6 different cross-cut tests with easy positioning by use of vision panel integrated in one.
  • Instrument, amongst others the lattice pattern with 11 cuts according to ASTM D3359 method B
  • Made of stainless steel. Also preferred to use for X cut Knife test as per ASTM D6677

Ask for complete CES 243 Multi Purpose Gauge Kit which includes multi-purpose gauge, slick knife, standard adhesive tape, magnifier and operating manual. To know more about cross cut adhesion test kit, contact us.

Ordering Information:

CES 243 – Multi Purpose Gauge Paint Kit
Ranges Gap Heights: 0 mm to 2 mm (0“ – 0.08“), sagging: 0.25 mm to 4.0 mm (0.01“ -0.16“),
Wet Film Thickness: 50 µm to 500 µm (2.0 mil – 19.7 mil)

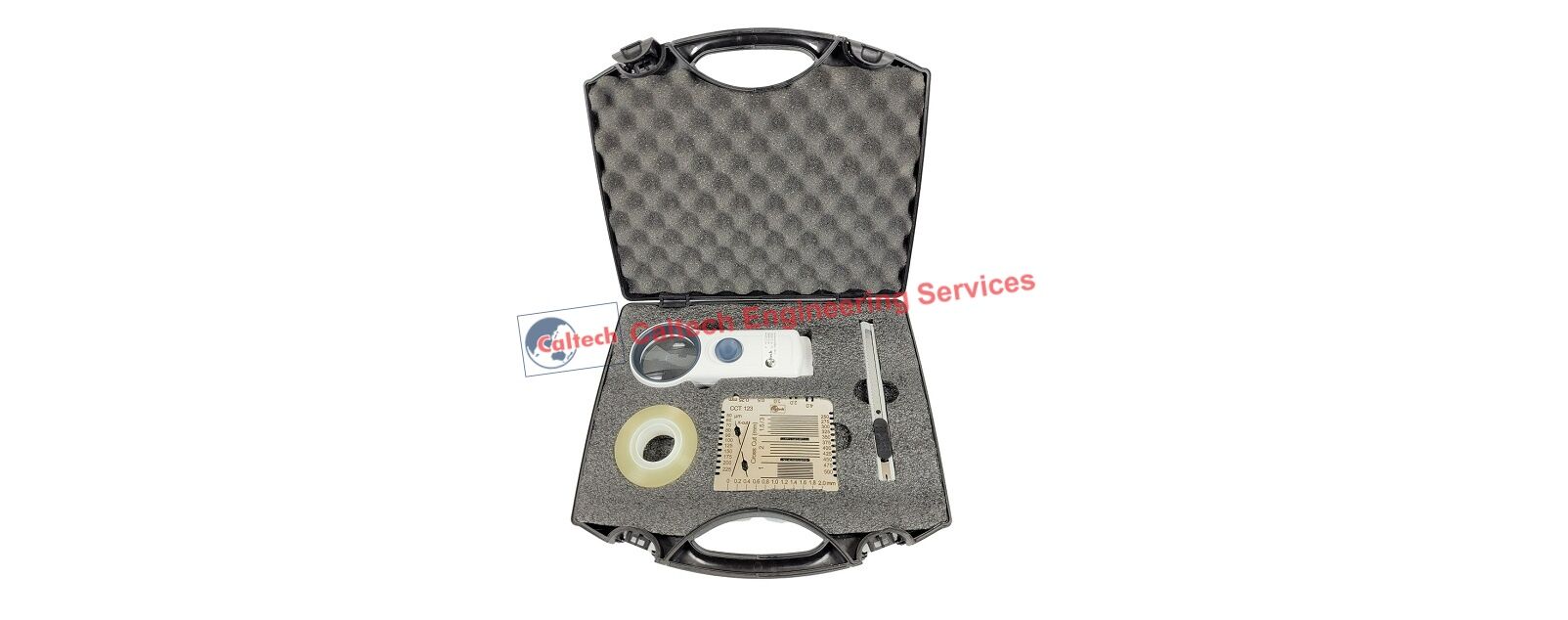

Kit Includes Paint Master Plate, Slick Cutter, Standard Adhesive Tape, Magnifier, Operating Manual
Optional – ASTM D3359 / ASTM 6677 Adhesive Tape
Standards ASTM D3359, ASTM D6677, EN ISO 2409, EN ISO 2808, EN ISO 3359
