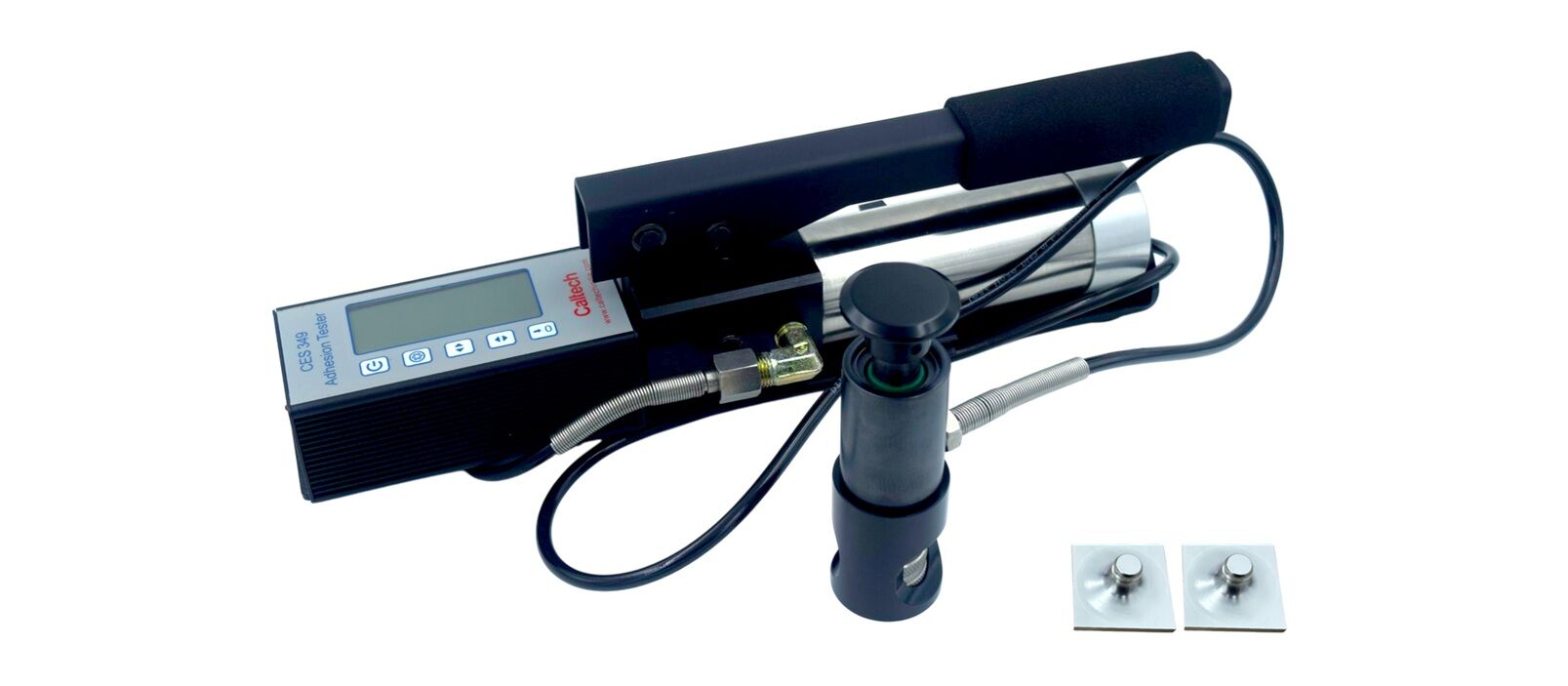

Caltech India is the manufacturer and supplier of CES 349 SD Digital Pull-Off Adhesion Gauge. CES 349 SD Digital Pull-Off Adhesion Tester is a portable, hand-operated hydraulic instrument which is used to measure the force required to verify adhesive of ceramic tiles, epoxy coating away from its substrate using hydraulic pressure. This has dolly of 50 mm x 50 mm cross-sectional area. The pressure is displayed on a digital LCD and represents the coating’s strength of adhesion to the substrate.
Pull-Off Adhesion Tester is a easy to operate and fully portable, provides a test results values for adhesion. Using Square Dolly is also called as Tile Conversion Kit. Pull off Adhesion Tester has direct pull tensile force test and with suitable capacity and sensitivity for the test. This is capable of applying the load to the pull-head plate through a suitable fitting that does not exert any bending force.
High precision digital pull-off type measuring instruments for adhesion and bond strength testing of all types of films, coatings, laminates, adhesives, metals plastic coatings, concrete coats, and mortars and plasters and other materials. The self-adjusting feature results in extremely accurate and reproducible adhesion test results.
The test is performed by securing a self-aligning quick coupling (dolly) perpendicular to the surface of the coating with an adhesive. After the adhesive is cured, a testing apparatus is attached to the loading fixture and aligned to apply tension perpendicular to the test surface. Pull-Off Adhesion Tester CES 349 SD conforms to international standards including BS EN 12004-2, ASTM D4541/D7234, ISO 4624/16276-1, AS/NZS 1580.408.5 and others.
Standards: ASTM D4541, ASTM D7234, EN 13144, ISO 4624, ISO 16276, etc.
Ordering Information:
| CES 349 SD – Digital Pull Off Adhesion Tester | |
| Model | CES 349 SD |
| Dolly Size | 50 mm (Square) |
| Resolution | 0.01MPa ( 1psi ) |
| Accuracy | ±1% Full scale |
| Max. Pull-off pressure | ø10mm dolly 2.8-80MPa; ø14mm dolly 1.4-40MPa; ø20mm dolly 0.7-20MPa; ø50mm dolly 0.4-3.5MPa; ▢50mm dolly 0.2-2.7 Mpa |
| Power | Built-in rechargeable lithium battery, and standard configuration charging adapter. |
| Tester Size | ( L x W x H ): 400mm x 70mm x 110mm |
| Tester Weight | 3.5 Kg |
| Packing List | Adhesion Tester with digital display 50mm Square Aluminum Test Dollies (5 pcs/package) Customized Square Dolly Adapter for 50 mm Sq. Dollies Dolly Holder for 50 mm Sq. Dollies (SS) 3M Adhesive Micro-USB cable Operation Manual Carrying case |
| Optional Accessories | Square Support for RD Adhesion Tester (5 No) |
