A Small Aperture Glossmeter is a specialized device used to measure the gloss of small materials or uneven areas. It features a small measurement aperture, making it ideal for analyzing tiny, intricate, or textured surfaces such as coatings, prints, and precision-engineered parts. This type of glossmeter ensures accurate gloss evaluation in industries like electronics, automotive, and packaging, where surface appearance and quality control are critical.
Caltech India is the manufacturer and supplier of CES 502/S Micropore (Small Aperture) Gloss Meter. Micropore Gloss Meter has been manufactured with independent intellectual property, manufactured according to international standard ISO2813, ASTM D523, and ASTM D2457 standard. It is also called as Small Aperture Glossmeter. Contact us for the best price of small aperture gloss meter.

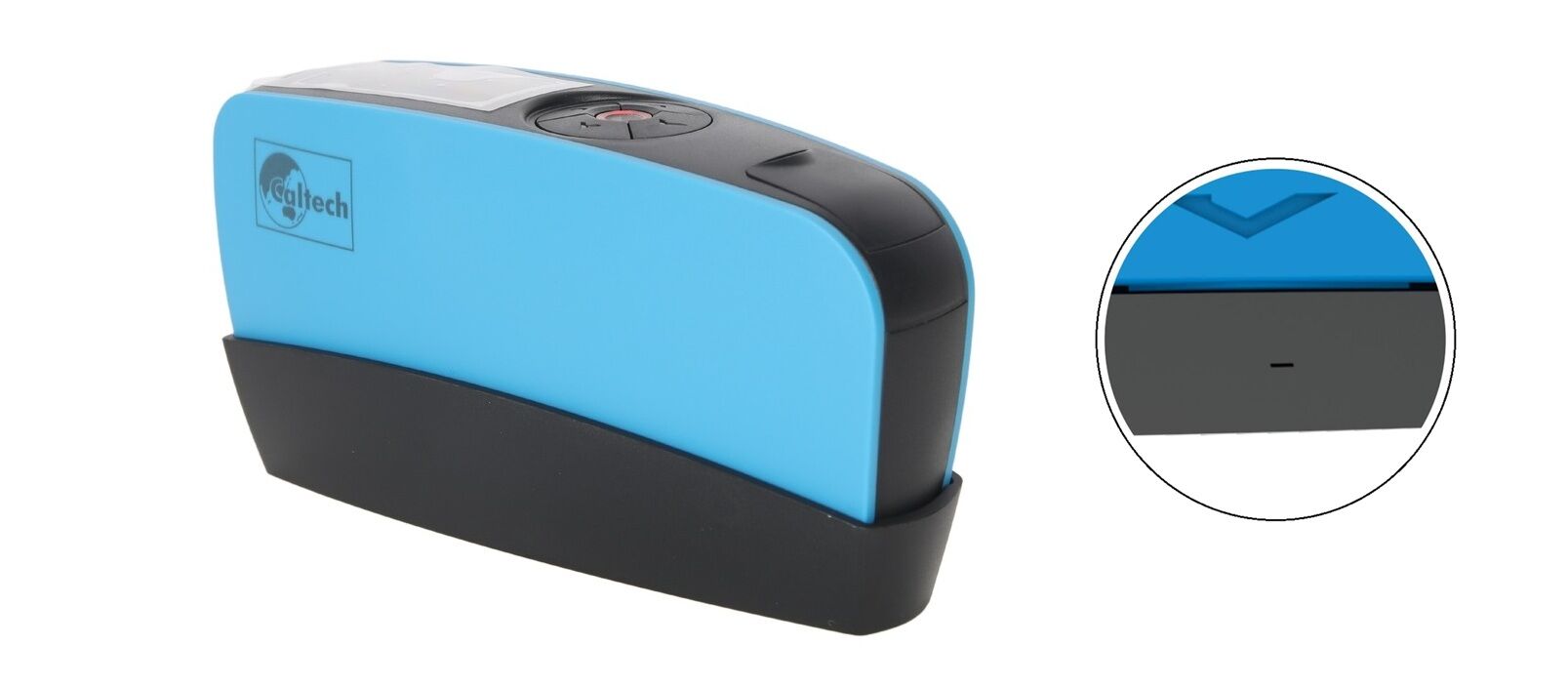

Micropore Gloss Meter CES 502/S is a high-precision small-aperture handheld gloss meter, which is professionally used for gloss measurement of curved surfaces or ultra-small objects. The instrument adopts a 60° universal angle design, with a range of up to 1000GU, simple operation and strong portability. It is widely used in gloss measurement and quality inspection in paints, inks, coatings, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.
Product Features:
- Microporous design, suitable for detecting the glossiness of samples with curved surfaces, irregular objects, small objects, etc.
- High measurement accuracy, completely comparable to the test data of imported glossmeters.
- Multi mode measurement, supporting switching between basic mode, statistical mode, continuous mode, and quality management mode.
- It has the function of automatically checking and calibrating the standard board, ensuring the accuracy and reliability of long-term measurements.
- Low power consumption, one fully charged No. 5 battery (AA alkaline battery or nickel hydrogen rechargeable battery), capable of testing more than 10000 times.
- Easy to operate and learn; No complex settings, measurement can be completed in 0.5 seconds.
- Lightweight and portable, it can be carried with you, making it convenient for flexible application in production sites.
- The instrument is equipped with powerful PC data management software, supporting online measurement, printing test reports, and data transmission.
- Optional accessories: Bluetooth adapter, micro printer; (Micro printer – easy to carry, without computer can continuously print out the measurement of various parameters, easy to save.)
Applications:
It can be used for gloss measurement and gloss data transmission in paint, ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.
Ordering Information:
| CES 502/S – Micropore High Precision Gloss Meter | |
| Measuring Angles | 60° |
| Measuring spot (mm) | 60°: 2X4 |
| Measuring range | 60°: 0~1000GU |
| Graduation value | 0.1GU |
| Measurement Mode | Basic mode, statistical mode, continuous mode, quality control mode |
| Measure time | 0.5 seconds |
| Repeatability | 0~100GU:±0.2GU ; 100~1000GU:±0.2%GU |
| Accuracy | Meet the requirements of JJG 696 working gloss meter |
| Automatic shutdown time | 30~120 seconds optional |
| Long time calibration | Auto Identify Calibration Board and Calibrate / manual calibration |
| Language | English, |
| Storing data | 35,000 (15,000 in basic mode and continuous mode, 10,000 in quality control mode, 10,000 in statistical mode) |
| Display | 2.3 inch black and white display |
| Size | 160X52X84mm |
| Weight | About 300g (including calibration box and batteries) |
| Power supply | 1 AA alkaline battery or NiMH rechargeable battery, can measure more than 10,000 times; or use USB port |
| Interface | USB |
| PC Software | GQC6 quality management software, quality inspection report printing, more functional expansion |
| Operating temperature range | 0~40°C (32~104°F) |
| Storage temperature range | -20~50°C (-4~122°F) |
| Humidity | Less than 85% RH, no condensation |
| Standard accessories | USB data cable, instruction manual, GQC quality management software (download from official website or provided by after-sales), calibration board |
| Optional accessories | Micro printer, Bluetooth 5.0 adapter |
