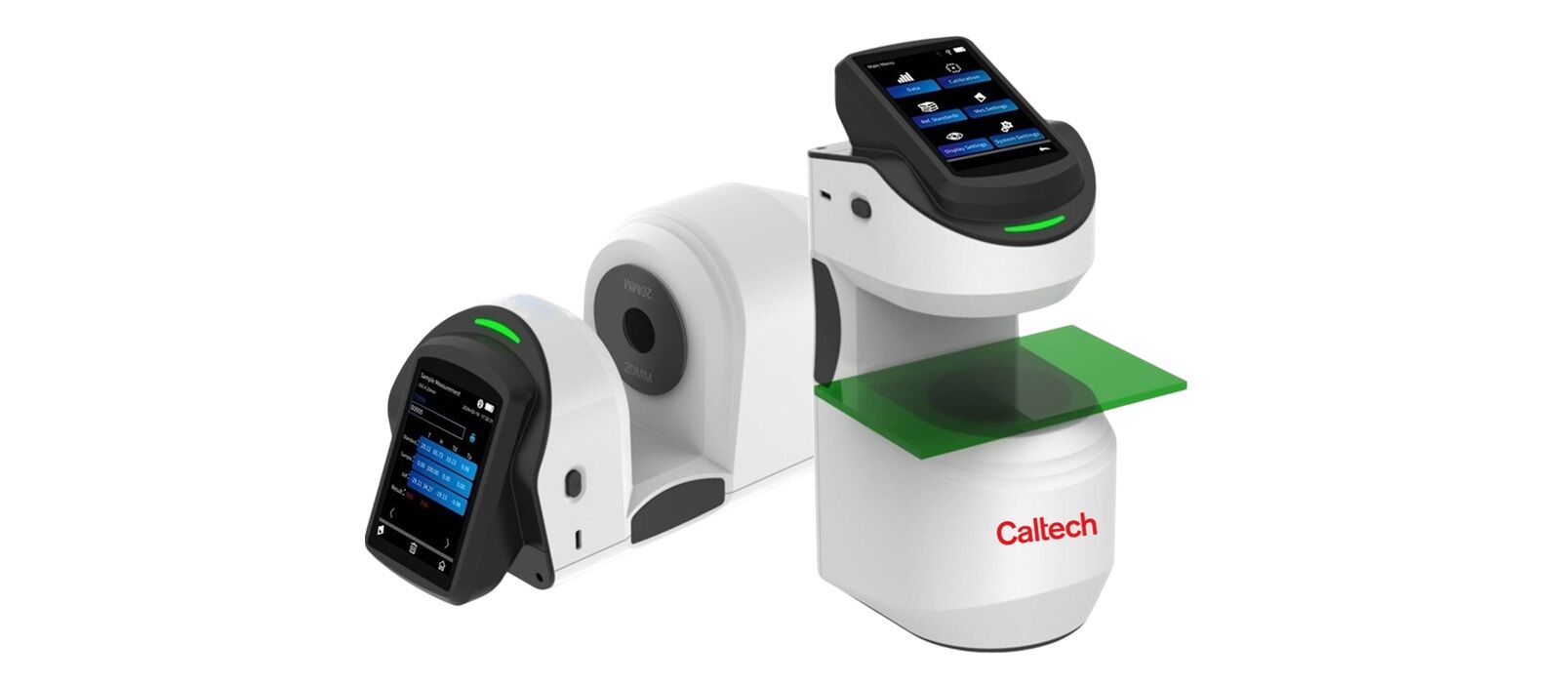

Caltech India is the leading manufacturer and supplier of CES 549 Accuracy Haze Meter (Handheld). The CES 549 Portable Haze Meter is a high-precision handheld haze tester developed by us, designed to quickly and accurately measure the haze value and transmittance of transparent or semi-transparent materials. It is widely used in industries such as glass processing, plastic processing, film and display screen processing, packaging, liquid pharmaceutical analysis, etc. Here are some related terms for haze meter: optical haze meter, transparency tester, clarity meter, transmission haze meter, haze and clarity analyzer, light diffusion tester, film haze tester, plastic haze meter, glass transparency meter. The clarity and haze meter complies international standards such as ASTM D1003, ASTM D1044, ISO 13468, ISO 14782, and etc.
One click measurement of Haze and Transmittance
- Supports ASTM and ISO standards
- Dual Caliber
- Adapt to more sample testing needs
- Fast measuring
- Broad-spectrum light source
- PD array detector
- Computer connection
Features:
- Versatile Measurement:
The open measurement area supports both vertical and horizontal measurements, accommodating a wide range of sample types and greatly enhancing measurement convenience and flexibility. - Simple Calibration Process:
Calibration is straightforward, requiring only 100% calibration, facilitating efficient measurement operations. - Four Measurement Apertures:
Equipped with four measurement apertures: ⌀20mm, ⌀15mm, ⌀8mm, ⌀4mm, catering to diverse sample testing requirements. - High Accuracy and Stability:
The instrument boasts high precision with a resolution of 0.01 and excellent stability, with repeatability <0.02. - Lightweight and Portable:
Designed based on ergonomic principles, the instrument features a compact and aesthetically pleasing design with added anti-slip silicone pads for comfortable handling. Suitable for both precise laboratory measurements and flexible applications in production environments. - Enhanced User Experience:
The tilted 3.5-inch large screen conforms to ergonomic principles, ensuring comfort during daily or continuous work and effectively preventing fatigue. The screen automatically rotates based on the instrument’s orientation, providing users with an excellent operating experience. - Dual Measurement Modes:
Switch between single measurement and average measurement modes as needed, meeting the diverse measurement requirements of different users. - Full-Spectrum Combined LED Illumination Source:
Utilizes a 400-700nm full-spectrum combined LED illumination source, meeting the haze and transmittance measurement requirements under CIE-D65, CIE-A, and CIE-C standard illumination sources. - Support for ASTM and ISO Measurements:
Supports ASTM and ISO dual-standard measurements, complying with standards such as ASTM D1003, ASTM D1044, ISO 13468, ISO 14782, GB/T 2410, JJF 1303-2011, CIE 15.2, JIS K7105, JIS K7361, JIS K 7136, allowing easy testing of transparent and translucent materials such as plastics, glass, and coatings for full transmittance and haze. - Support for ASTM and ISO Measurements:
Supports ASTM and ISO dual-standard measurements, complying with standards such as ASTM D1003/1044, ISO 13468, ISO 14782, GB/T 2410, JJF 1303-2011, CIE 15.2, JIS K7105, JIS K7361, JIS K 7136, allowing easy testing of transparent and translucent materials such as plastics, glass, and coatings for full transmittance and haze.
Application Industry: The CES 549 portable haze meter is widely used in glass processing, plastic processing, film and display screen processing, packaging industry, liquid pharmaceutical analysis, and other fields.
Standards: ASTM D1003, ASTM D1044, ISO 13468, ISO 14782, GB/T2410, JJF 1303-2011, CIE 15.2, JIS K7105, JIS K7361, JIS K 7136
Ordering Information:
| CES 549 - Accuracy Haze Meter (Handheld) | |
| Product Model | CES 549 |
| Lighting Method | Transmission : 0/D (parallel light illumination, diffuse reflection reception); |
| Compliant with standards | ASTM D1003/1044, ISO 13468, ISO 14782, GB/T2410, JJF 1303-2011, CIE 15.2, JIS K7105, JIS K7361, JIS K 7136 |
| Features | The instrument can easily achieve ASTM D1003, full transmittance, and haze testing. Open measurement area for vertical and horizontal testing. It is widely used in industries such as glass processing, plastic processing, film, display screen processing, and packaging for transmittance and haze detection. |
| Integral Sphere Size | ⌀ 90mm |
| Lighting Source | 400-700nm combined LED light source |
| Splitting Method | / |
| Sensor | PD array detector, meeting CIE V(A) 2 degree visual response |
| Measurement Wavelength Range | / |
| Wavelength Interval | / |
| Half Bandwidth | / |
| Transmittance Measurement Range | 0-100% |
| Measurement Caliber | ⌀20mm/⌀15mm/⌀8mm/⌀4mm |
| Sample Size | Thickness less than 40mm |
| Color Space | / |
| Color Difference Formula | / |
| Other Chromaticity Indicators | Haze (ASTM D1003/1044, ISO 13468), Transmittance T (ISO), Transmittance T (ASTM) |
| Observer Angle | 2° |
| Observation Light Source | D65, A, C |
| Display | Qualified/Unqualified Results |
| Measurement Time | approximately 1.5 seconds |
| Resolution | 0.01 units |
| Repeatability | 0.02 (⌀ 20mm caliber, after preheating and calibration of the instrument, test the standard haze film with a haze of about 30 at intervals of 5 seconds for 30 standard deviations) |
| Inter Station Difference | 0.4 (⌀ 20mm caliber, after instrument preheating correction, test the standard deviation between the haze standard haze sheet and the reference value at intervals of 5 seconds) |
| Dimensions | 100x129x238mm (LxWxH) |
| Weight | approximately 1.3kg |
| Power Supply Method | Built in 5000mAh lithium battery |
| Lighting Source Lifespan | 5 years, greater than 3 million measurements |
| Display Screen | TFT true color 3.5inch, capacitive touch screen |
| Interface | USB, Bluetooth |
| Storage Data | 1000 standard samples and 20000 samples |
| Language | English |
| Operating Temperature Range | 0-40°C (32-104 ° F) |
| Storage Temperature Range | -20-50 °C (-4-122 ° F) |
| Standard Attachments | Power Adapter, Manual, Quality Management Software (Downloaded From Official Website), Data Cable, Measurement Caliber |
| Optional Accessories | Micro Printer, Testing Fixture, Standard Haze Film |
