Coating Thickness Gauge with Right Angle Probe

Synonym :

Category: Coating Inspection, Dry Film Thickness

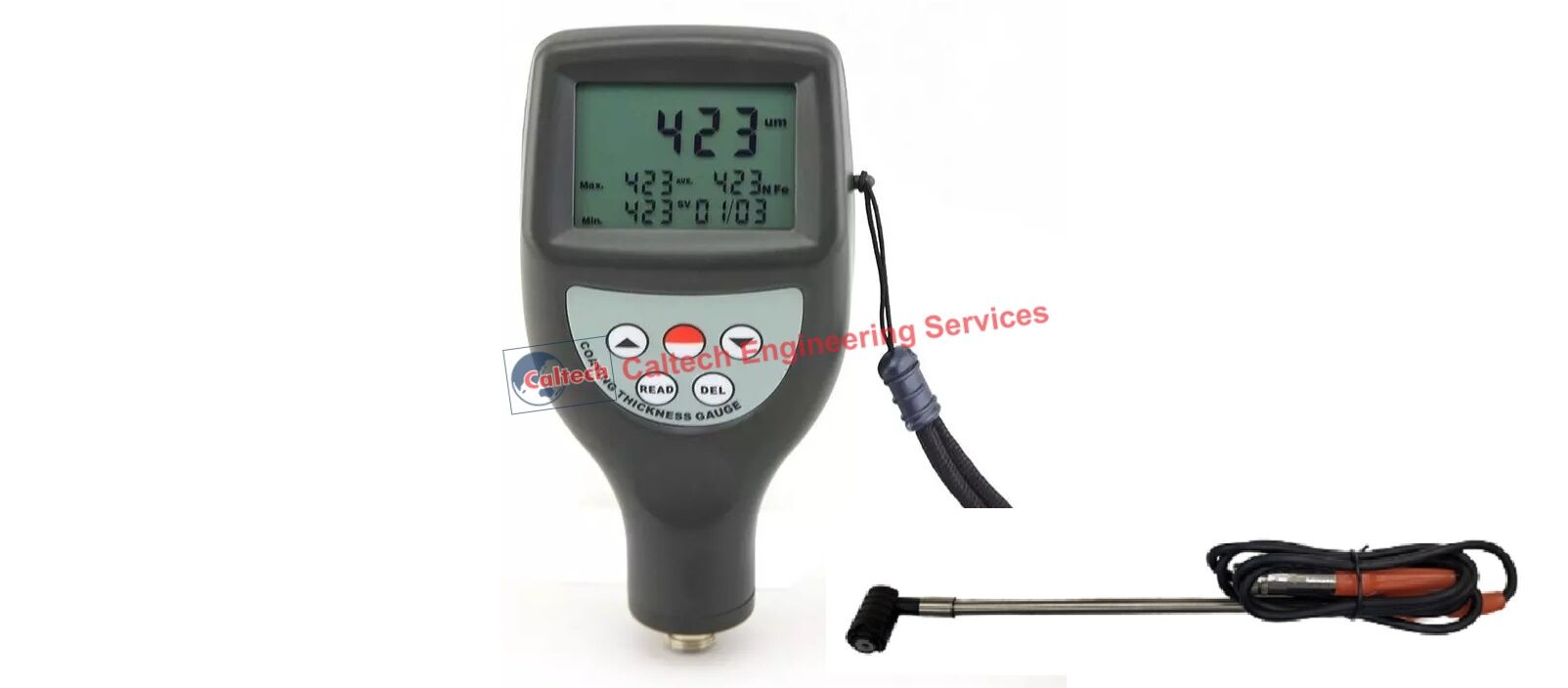

Caltech India offers CM 8856 Digital Coating Thickness Gauge with Right Angle Probe 90° for Ferrous & Non Ferrous base material.

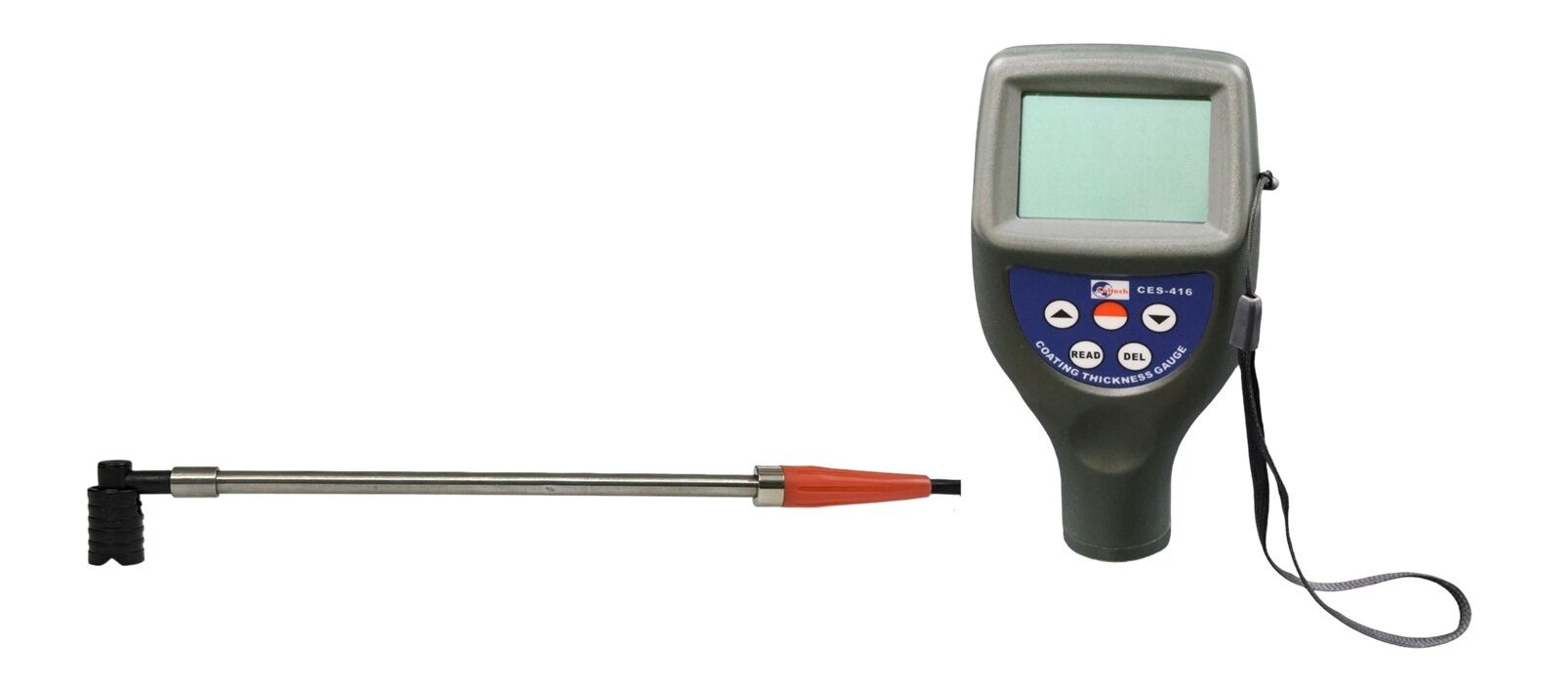

CM-8856 Coating Thickness Gauge with Right Angle Probe has dual technology features selection of magnetic induction or eddy current measurement techniques. Right Angle Ferrous Probe 90° measure non magnetic coatings on ferrous-magnetic substrates. Right Angle Non Ferrous Probe 90° measure non conductive coatings on non-ferrous metal substrates.

Principle: F Type Magnetic Induction (Iron Base)
Applications: Measure the thickness of non-magnetic materials on magnetic materials
Examples: Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc

Principles: NF Type Eddy Current (Aluminium Base)
Applications: Measure the thickness of non-conductive coatings on nonmagnetic metals
Examples: Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc

Features:

* Can store the new data in 99 groups.
* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous (Notice: Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shutdown.
* Automatic memory of calibration value, and automatic recognize the substrate.
* Operation process have buzzing reminder, while no buzzing in continuous mode.
* Separate Type can provide several type probes, measure can be more flexibility.

Specifications:

Principle F Magnetic Induction & NF Type Eddy Current
Range 0~1250µm/0~50mil
Resolution 0.1µm/1µm
Accuracy ±1~3%nor±2.5µm
Min. Radius Workpiece F Type: convex 1.5mm/concave 25mm

NF Type: convex 3mm/concave 50mm

Min. Measuring Area 6mm
Min. Sample Thickness 0.3mm
Data Memory 99 Groups
Metric/Imperial
Battery Indicator
Automatic Power Off
Operating Conditions Temperature 0~40ºC
Humidity 10~90%RH
Power Supply 2×1.5V AAA(UM-4)Battery
Dimensions 126x65x35mm
Weight 81g without batteries
