Caltech India is manufacturer & supplier of CES-103 Dry Film Thickness Gauge (DFT Meter). Dual technology features automatic selection with one single probe for ferrous & nonferrous material using both magnetic induction or eddy current measurement techniques. DFT Meter full form is Dry Film Thickness Meter. Enquire now, to know the DFT meter price.

The CES-103 is an advanced Fe/NFe dry film thickness gauge which can perform non-destructive measurement of DFT on both ferrous and non-ferrous substrates. The CES-103 will perform measurement of coating thickness on all metal type.

Dry film thickness (DFT) or coating thickness is the most important measurement made during the application and inspection of protective coatings. Coatings are designed to perform their intended function when applied within the DFT range as specified by the manufacturer. Correct paint thickness ensures optimum product performance. Even the most basic specification will require DFT to be measured.

The CES-103 DFT Meter can be used to measure the thickness of non-conductive coatings on non-ferrous metals and non-magnetic insulating coatings on ferromagnetic metals (such as iron, nickel and cobalt, etc.). They are mainly used for non-destructive thickness measurement for the coatings of paint or galvanized layers on iron and stainless steel, paint or plastic film on aluminum and copper, etc.

CES-103 DFT Gauge comes with external probe combined with magnetic induction and eddy currents principle, which is with measuring range of 0 to 2000μm and accuracy of ±(3%+1μm), and the highest resolution is up to 0.1μm. CES-103 is only with one button, and it is easy to operate. When you start measurement, place the probe vertically and rapidly on a suitable surface, then the device will automatically distinguish the substrate material and measure the thickness of coatings.

On the basis of CES-103 coating thickness gauge is upgraded its probe and accuracy, and added new functions. The CES-103 is with stronger anti-interference ability. It also works in the high electromagnetic field environment. The accuracy of paint film thickness gauge CES-103 is ±(2%+1μm), and the measurement result can be sent to the mobile app in real-time via bluetooth.

CES 103 DFT Meter comes with external probe. It is better suited to work in narrower spaces or on assembly lines. Each DFT Meter is factory calibrated at a number of reference points with the utmost care to make sure the highest possible degree of trueness.

Coating thickness testing for car paint, electroplating, surface technology, pipeline anticorrosion coating, mechanical equipment surface anticorrosion, chemical equipment and quality control. DFT Meter most common uses include measuring thickness of paint, chrome, powder coating or galvanized layer on iron and steel. Similarly, measuring thickness of paint or anodize coating over aluminium, stainless steel and copper.

Coating on metal is done to ensure protection against corrosion. Also, low quality coating results in nicks and erosion. Coating thickness inspection or Dry film thickness (DFT) is necessary for checking quality during application and inspection of protective coatings.

Get digital DFT gauge price at best price from DFT Meter manufacturer, supplier, exporters. We also sell DFT Meter to reseller, traders & wholesalers. To know the dft meter price, contact us.

Features:

• Two in one principle combined (magnetic induction and eddy currents), ruby probe
• With Bluetooth and Mobile app function
• Record data and transfer to PC
• Resolution is up to 0.1μm
• Accuracy ±(2%+1μm)
• Measuring range 0~2000μm
• Can recall 10 measuring data
• One button control, easy to use
• Zero calibration, Auto backlight, Auto shut down
• Maximum measuring rate: 2 reading / s
• Dot matrix LCD display
• Low battery protection

Application:

Laboratory physical measurement and recording, Boiler equipment operation, Concrete pouring, Metal processing, Food, Medicine, Household, Industry, Aerospace, Cold chain transportation, Car market, Supermarket

All above complete set comes with Zero Blocks-2 Nos & 5 Nos of calibration foils in carrying case and calibration certificate.

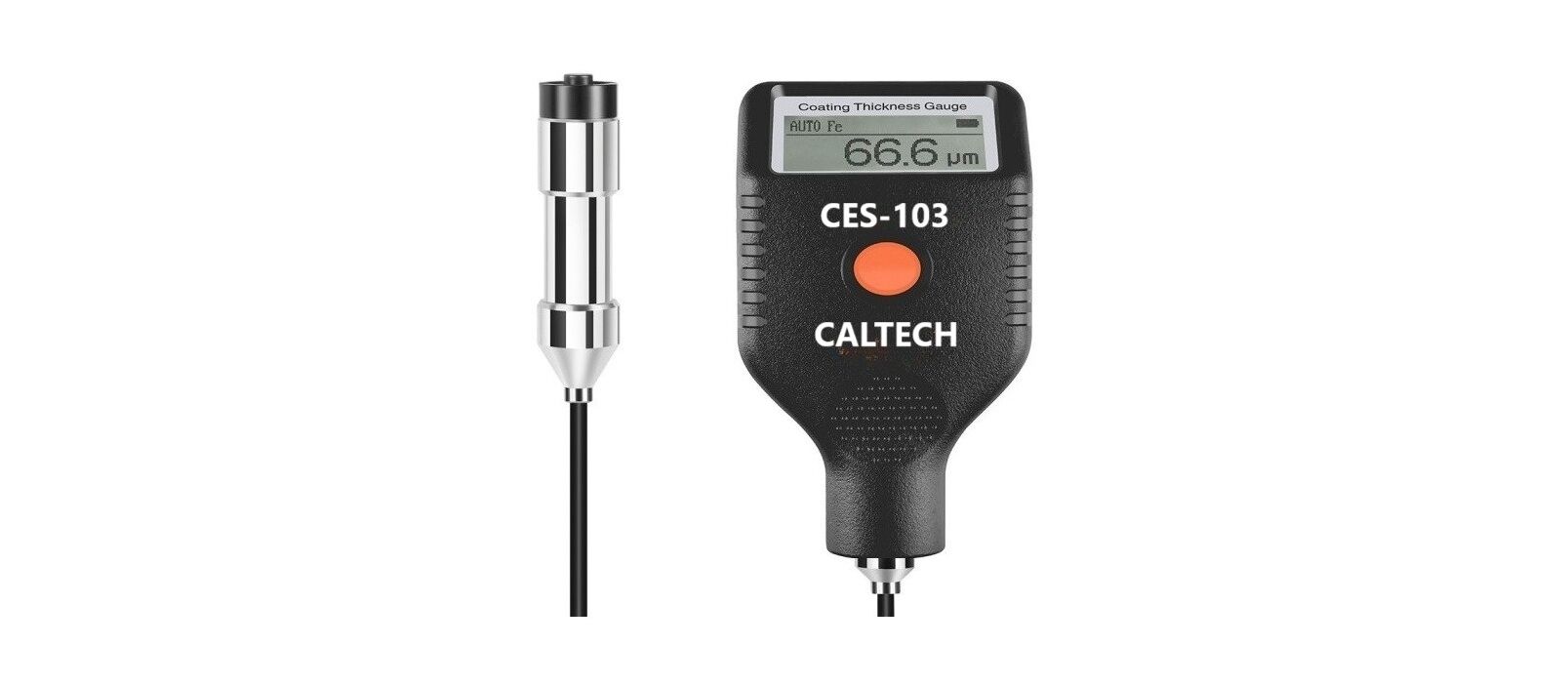

CES-103 Dry Film Thickness Gauge (DFT Meter)
Model	CES-103 with External probe
Measuring Principle	Fe: Magnetic induction; NFe: Eddy currents
Measuring Range	0-2000μm
Accuracy	±(2%+1μm)
Resolution	0.1μm(0~100μm); 1μm>100μm)
Unit	μm, mm, mils
Probe Trigger Mode	Mechanical trigger, trigger force : 0.5-1.2N
Display	128×48 dot matrix LCD display, with backlight
Bluetooth & App	Yes
Operation Environment	Temperature: -10~+50ºC Humidity: 20~90%RH (Non-condensing)
Power Supply	Two pcs 1.5V AAA alkaline battery; Two pcs 1.2V AAA rechargeable battery
Protection Class	IP40
Case Material	Housing: ABS & Probe: Stainless Steel
Weight	About 112g (No battery)
Standard Compliance	CE, ROHS, ISO 2178, 2360, 4957-2003, JJG-818-2005
Warranty	1 Year
