Paint Film Thickness Meter

Synonym : Coating Thickness Meter, Paint Film Thickness Gauge, Coat Meter, Dry Film Thickness Gauge, DFT Meter

Category: Coating Inspection, Dry Film Thickness

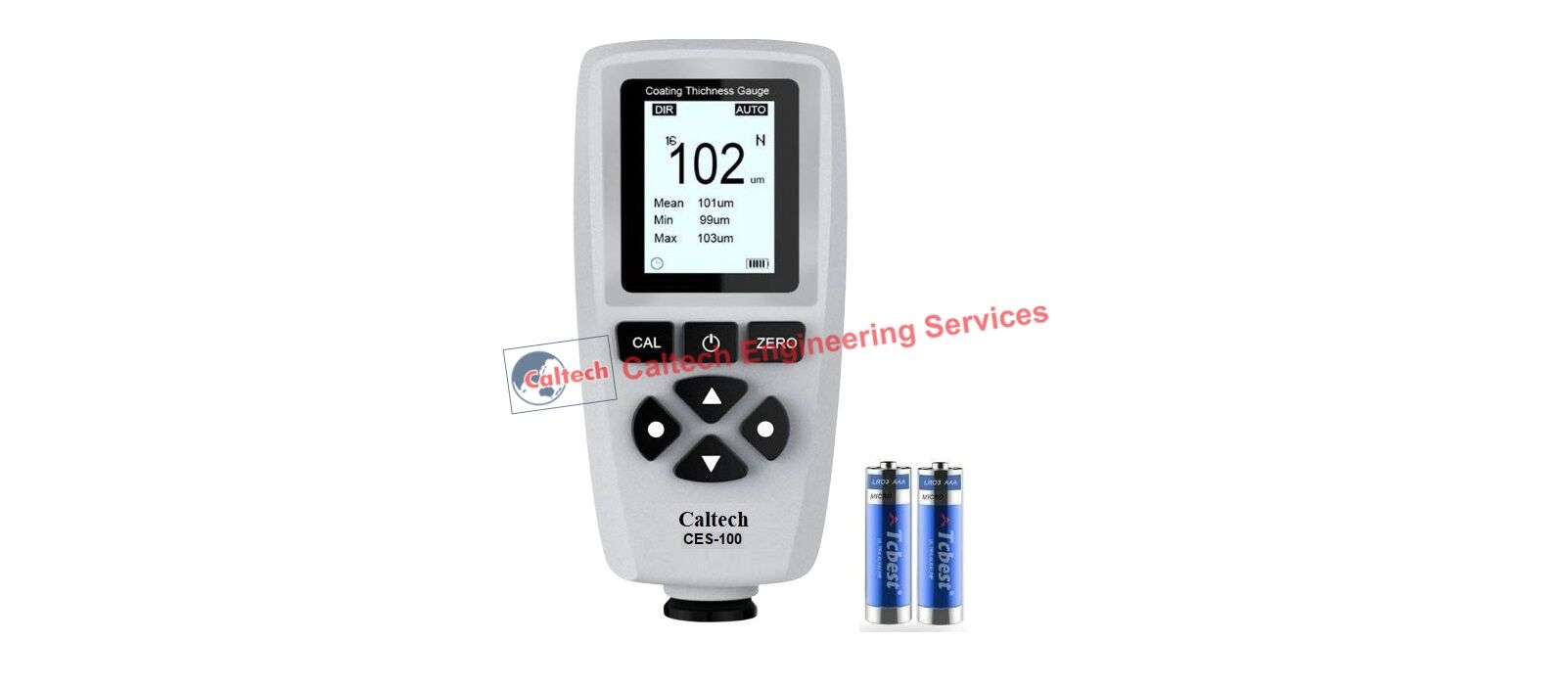

Caltech India offers CES-100 Paint Film Thickness Gauge with dual technology features automatic selection of magnetic induction or eddy current measurement techniques. We are largest seller of painting thickness gauge in India. Paint coating thickness gauge is highly recommended for testing powder coating thickness, anodizing aluminum thickness, paint shops, anodizing thickness tester, powder coating aluminum thickness gauge, powder coating equipment, powder thickness gauge, paint thickness gauge, aluminium coating processes, and hard anodizing. Paint Film Thickness Meter is used by leading car manufacturers in the automotive paint industry. Paint film thickness meter has PC connectivity for measuring and recording data on PC. It can give min, max, average and statistical data.

We provide wide range of non-destructive paint coating thickness gauge includes digital coating thickness gauges, suitable for dry film testing, complete with a wide range of probes and calibration foils to suit your application.

The menu of the paint thickness gauge allows easy adjustment and setting, and these makes the handy paint coating thickness gauge an essential tool for control measurements in production, workshop and quality assurance.

Caltech India offers a wide range of paint thickness meter gauge to measure dry film thickness of paint, powder coating, anodizing, aluminum, hard anodizing, galvanizing, chrome, copper, lacquers, plastics, enamel, anticorrosive coating, fireproof coating, zinc coating and many more. To know paint thickness gauge price in india, contact us.

Now Dual purpose Coating Thickness Meter is available in India

Features:

  • 128*128 dot matrix LCD display, standard menu operations
  • Two measure mode: single and continuous
  • Two group mode: direct (DIR) and general(GEN), readings will be lost when power off in direct mode, and not be lost in general mode. 80 readings can be stored for each group
  • Zero point calibration and multi-point calibration(up to 4 points) for each group
  • User can recall, delete specified readings, or delete group readings
  • Statistics display: mean, minimum, maximum and standard deviation
  • Three probe mode: auto, magnetic and eddy current
  • User can set high or low limit alarm for each group
  • Power off automatically
  • USB interface to data transmission
  • Low battery and error indication

Specifications:

Sensor probe Ferrous (F) Non Ferrous (NF)
Working principle Magnetic induction Eddy current principle
Measuring range 0~1250um 0~1250um
Guaranteed tolerance (of reading) (+/- 3%+1)um (+/- 3%+1.5)um
Low range Precision 0.1um 0.1um
Minimum curvature radius 1.5mm 3mm
Diameter of Minimum area 3mm 5mm
Basic critical thickness 0.5mm 0.3mm
Size(HxWxD) 110mm*53mm*24mm
Weight 92g

Accessories:

Two “AAA” batteries, USB cable, CD, Calibration Iron, Calibration Aluminum, Precision Standard, in a carrying case.

Ordering Information:

Paint Film Thickness Meter
CES-100 Coating Thickness Gauge (Ferrous & Non Ferrous 2000 µm)
Coatem F Coating Thickness Gauge (Ferrous 0-2000 µm)
Coatem NF Coating Thickness Gauge (Non Ferrous 0-2000 µm)
CES-408 FN Coating Thickness Gauge (Ferrous & Non Ferrous 1250 µm)
CF 1500 Calibration Foils
Fe Base Stainless Steel Zero Block
