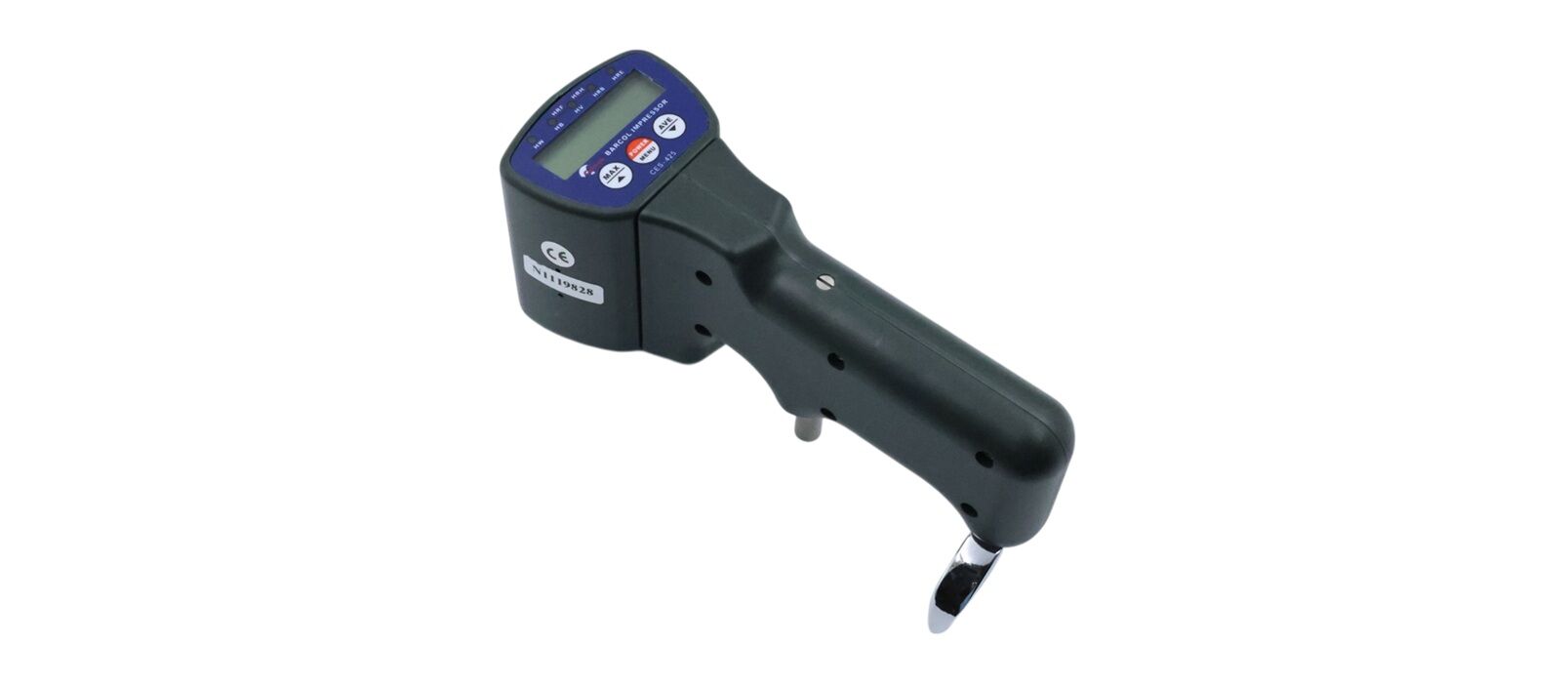

Barcol Impressor Hardness Tester

Caltech India is the leading manufacturer and supplier of CES 425 Digital Barcol Impressor Hardness Tester. We offer great quality digital barcol hardness tester. It is a portable handheld barcol hardness tester used to measure the hardness of pure aluminum, soft aluminum, thick aluminum alloy and aluminum sheets, strips, rods, castings and forgings. It is easy to use and ideal for measuring the hardness of soft metals, plastics, glass fibre and leather. To know more about Digital Barcol Hardness Tester price, contact us.

The hardness of fiber-reinforced (FRP) plastics, glass-reinforced (GRP) plastics, hard plastics and soft metals (such as copper or lead) also can be tested using this digital barcol impressor hardness meter.

Barcol hardness test characterizes the indentation hardness of materials through the depth of penetration of an indentor, loaded on a material sample and compared to the penetration in a reference material. This is an indentation-type of hardness, where pressure is uniformly applied on the surface of a specimen to the dial indicator maximum reading. The depth of penetration or indentation is then converted into an absolute Barcol number. The Barcol number is automatically generated by the measuring equipment. The testers are available in a range of models depending on the nature of materials to be tested.

Barcol Impressor Model is a digital indentation hardness tester, is the latest design and development of our company. It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non-disassembly calibration and adjusting. It is with good stability, convenient calibration, and high accuracy of detection. It is mainly used in aluminum processing industry, testing pure aluminum, soft aluminum, thick aluminum alloy, aluminum strip, aluminum rod, aluminum castings, aluminum forgings and aluminum alloy products. Also, it can be used for glass steel industry. We also deal in various types of barcol hardness test for frp. We also carry out barcol hardness tester calibration.

Standards: ASTM B648-10 (2015), ASTM D2583-13, and GB / T 3854-2005.
ASTM B648-10 (2015) Standard Test Method for Indentation Hardness of Aluminum Alloys by Means of a Barcol Hardness Tester.
ASTM D2583-75 Standard Method of Testing for Indentation Hardness of Plastics by means of a Barcol Impressor.
GB / T 3854-2005 Test method for hardness of reinforced plastics by means of Barcol Impressor.

Features:

• It is small size, portable with single hand operation, easy to use Barcol Impressor.
• Wide test range can test from very soft pure aluminum to a particularly hard aluminum alloy. Effective test range equivalent to the Brinell Hardness of 25~150HB.
• No need to be supported. Just test on one side of the sample with the hardness tester, no need to be supported. It is suitable for the test of large and extra thick workpiece.
• With the maximum hold function, recording the maximum hardness value during measurements.
• Can be used for measuring Barcol Hardness, other hardness value can be calculated out by the experimental curve. Such as Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).

Ordering Information:

In India, we have various customers from Mumbai, Delhi, Bangalore, Chennai, Hyderabad, Ahmedabad, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Visakhapatnam, Indore, Bhopal, Patna, Vadodara, Ghaziabad, Ludhiana, Coimbatore, Madurai, Nashik, Srinagar, Aurangabad, Dhanbad, Allahabad and Ranchi in India.
