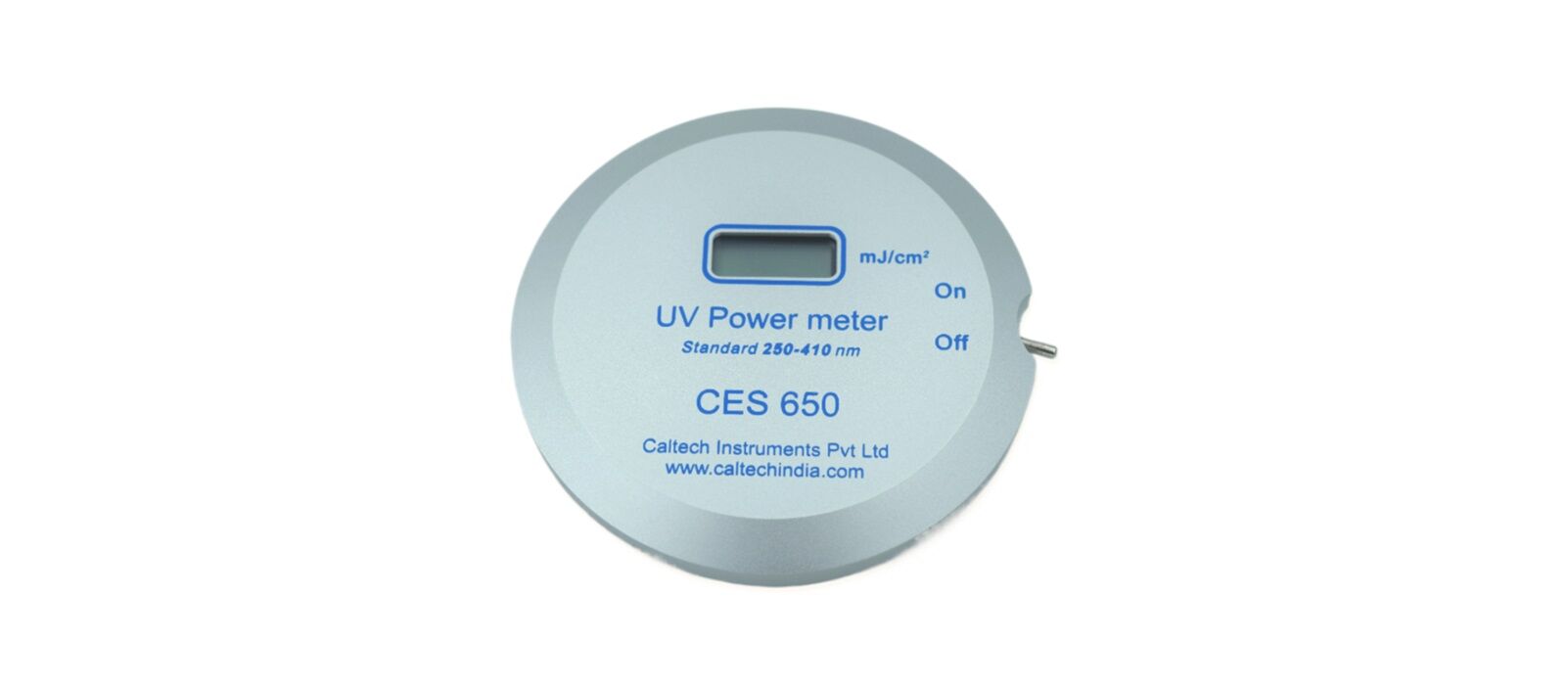

Caltech India is the leading manufacturer and supplier of CES 650 UV Integrator. The UV-Integrator is a high quality UV Measuring Instrument. UV Energy Meter is mainly used to measure the energy of UV drying equipment in low-purification spaces. The application scope is as follows: UV ultraviolet dryers, various manual exposure machines, semi-automatic exposure machines, fully automatic exposure machines, suitable for PCB, FPC, hardware etching, Other printed circuit boards and image transfer processes. It is also known as UV Energy Meter.
UV Power Meter are used to measure UV energy from different light sources, especially for printing machines and UV Solidify Machine. It is ideal to ensure quality control in the printing and drying process.
The spectral range that the energy meter can measure is: 250-410nm, λp: 365nm. the relative value is calculated as additional amounts of light are incident during the exposure cycle. due to the irregular radiation distribution of the light source, and different manufacturers have different structural designs. as a result, different readings may appear under the same measurement conditions.
Application:
UV Ultraviolet Dryer, Exposure Machine, Conveyor Belt, UV Lamp, UV Curing Machine and Other Equipment UV Energy Detection.
Features:
- UV Wavelength Measurement Range: 250-410nm , λp 365nm
- Measuring Range: 0-5000 mW/cm2
- Energy Display: 0-999,999 mJ/cm2
- Battery: Lithium Battery 3.6V
- Power Consumption: About 10,000 Hours (Lithium Battery)
- Working Temperature: 0-70°C, High Temperature 90-100°C (<10s)
- Warranty: 1 Year
- Size: Diameter 90mm, Height 12mm
- Weight: 150g
- Calibration period: 1 year
Ordering Information:
CES 650 – UV Energy Meter (UV Radiometer Dosimeter)
