Synonym : Laser Thermometer, Non-contact Thermometer, Temperature Gun
Small in size extremely accurate and easy to use Infrared Thermometer. IP54 rated for dust and water resistance.

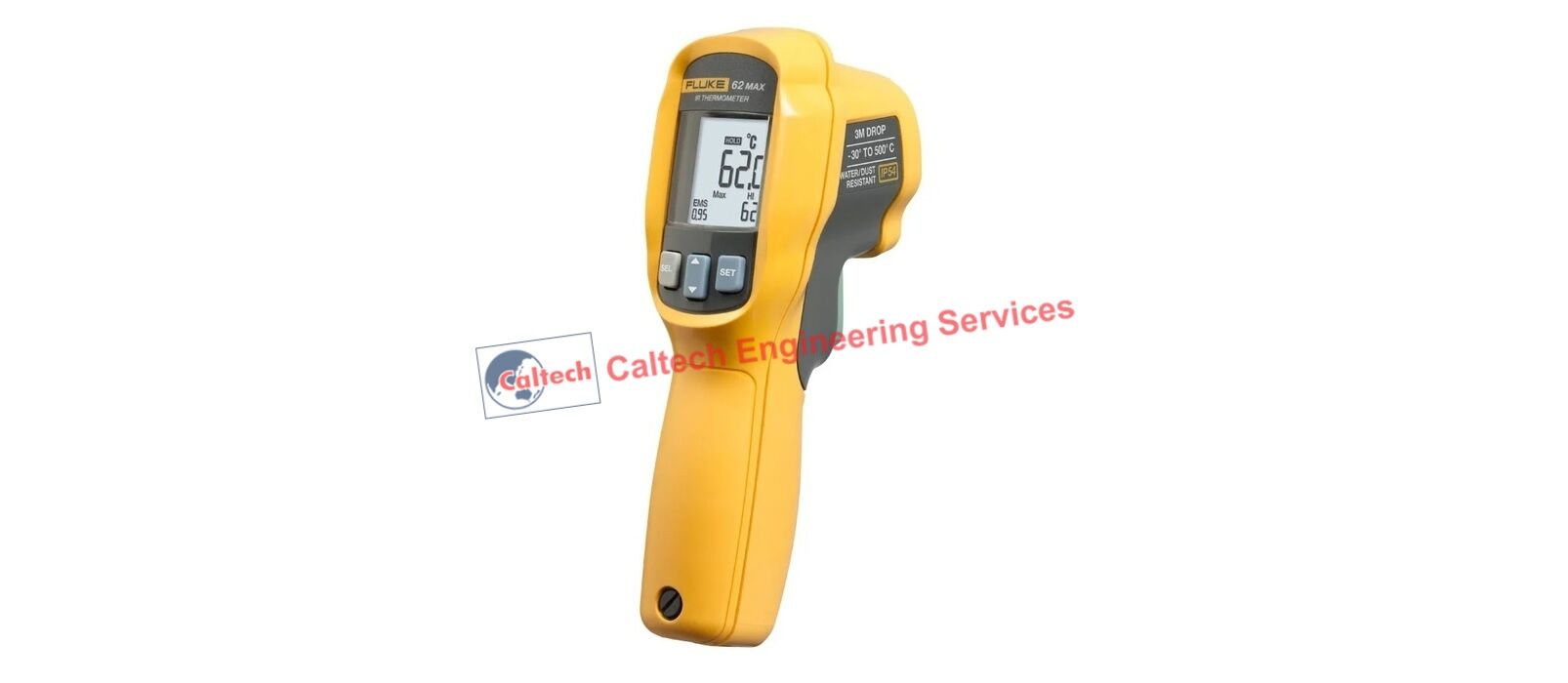

Caltech India – Mumbai offers newly designed infrared thermometers in India. Most economical priced Infrared thermometers. New Infrared thermometers with your on-the-job needs in mind, the new Fluke 62 Max Infrared Thermometer and Fluke 62 MAX + Infrared Thermometers are everything you’d expect from the experts in measurement tools. Small in size, extremely accurate and very easy to use. IP54 rated for dust and water resistance. Precise yet rugged enough to take a 3-meter drop. In fact, the 62 MAX and 62 MAX + are so tough, they’re the only IR thermometers around you can handle without care. Temperature is often the first indication of potential problems in electrical and mechanical applications. But how can you easily determine if an electrical panel has a hot spot, a motor is overheating or an HVAC system is inefficient? The answer is with an infrared (IR) thermometer. With handheld, non-contact IR thermometers, you can instantly measure equipment temperatures in hard-to-reach or hazardous areas. And with early detection of abnormal temperatures comes early correction of problems.
Automotive: Troubleshoot engines including ignition problems and fuel/air adjustments; test catalytic converters; diagnose cooling systems, including thermostats, cooling sensors and radiators; test heaters and air conditioners; check brakes, tires and wheel bearings.
HVAC: Balance room temperature; monitor supply/return registers; check furnace performance and window insulation.
Electrical: Check electrical panels; find defective transformers; detect loose electrical connections.
Features:
- Dust and water-resistant: IP54 rated for dust and water resistance.
- Rugged: 3-meter (9.8-foot) drop tested.
- Ergonomically designed: Completely redesigned for a more natural hand fit.
- Small and lightweight; clips to your tool belt or belt loop or easily fits into your tool box.
- Distance to spot: Precise laser technology makes for more accurate and repeatable measurements.
- Dual Lasers: The 62 MAX+ has dual rotating lasers to help you identify area to be measured. The measurement area is the spot between the dots.
- Large, backlit display: Large screen makes data easier to read, even in dark areas.
- Min/Max/Avg/Dif: Displays the minimum, maximum or average temperature, or the difference between two measurements.
- Alarm: Hi and Lo alarms for rapid display of measurements outside the limits.
- Power: Both the 62 MAX and 62 MAX+ are powered by a single, standard AA battery.
Specifications:
| Temperature Range | Fluke 62 MAX | -30 °C to 500 °C (-22 °F to 932 °F) |
|---|---|---|
| Fluke 62+ MAX | -30 °C to 650 °C (-22 °F to 1202 °F) | |
| Accuracy | Fluke 62 MAX | ±1.5 °C or ±1.5% of reading, whichever is greater |
| -10 °C to 0 °C: ±2.0 | ||
| -30 °C to -10 °C: ±3.0 | ||
| Fluke 62+ MAX | ±1.0 °C or ±1.0% of reading, whichever is greater | |
| -10 °C to 0 °C: ±2.0 | ||
| -30 °C to -10 °C: ±3.0 | ||
| Response Time (95%) | Fluke 62 MAX | <500 ms (95% of reading) |
| Fluke 62+ MAX | <300 ms (95% of reading) | |
| Spectral Response | 8 to 14 microns | |
| Emissivity | 0.10 to 1.00 | |
| Optical Resolution | Fluke 62 MAX | 10:1 (calculated at 90% energy) |
| Fluke 62+ MAX | 12:1 (calculated at 90% energy) | |
| Display Resolution | 0.1 °C (0.2 °F) | |
| Repeatability of Readings | Fluke 62 MAX | ±0.8% of reading or <±1.0 °c (2 °f), whichever is greater |
| Fluke 62+ MAX | ±0.5% of reading or <±0.5 °c (1 °f), whichever is greater | |
| Power | AA battery | |
| Battery Life | Fluke 62 MAX | 10 hours with laser and backlight on |
| Fluke 62+ MAX | 8 hours with laser and backlight on | |
| Standards and Agency Approval | Compliance | EN/IEC 61010-1: 2001 |
| Laser Safety | FDA and EN 60825-1 Class II |
