Ideal for measuring the surface profile of steel cleaned by abrasive blast

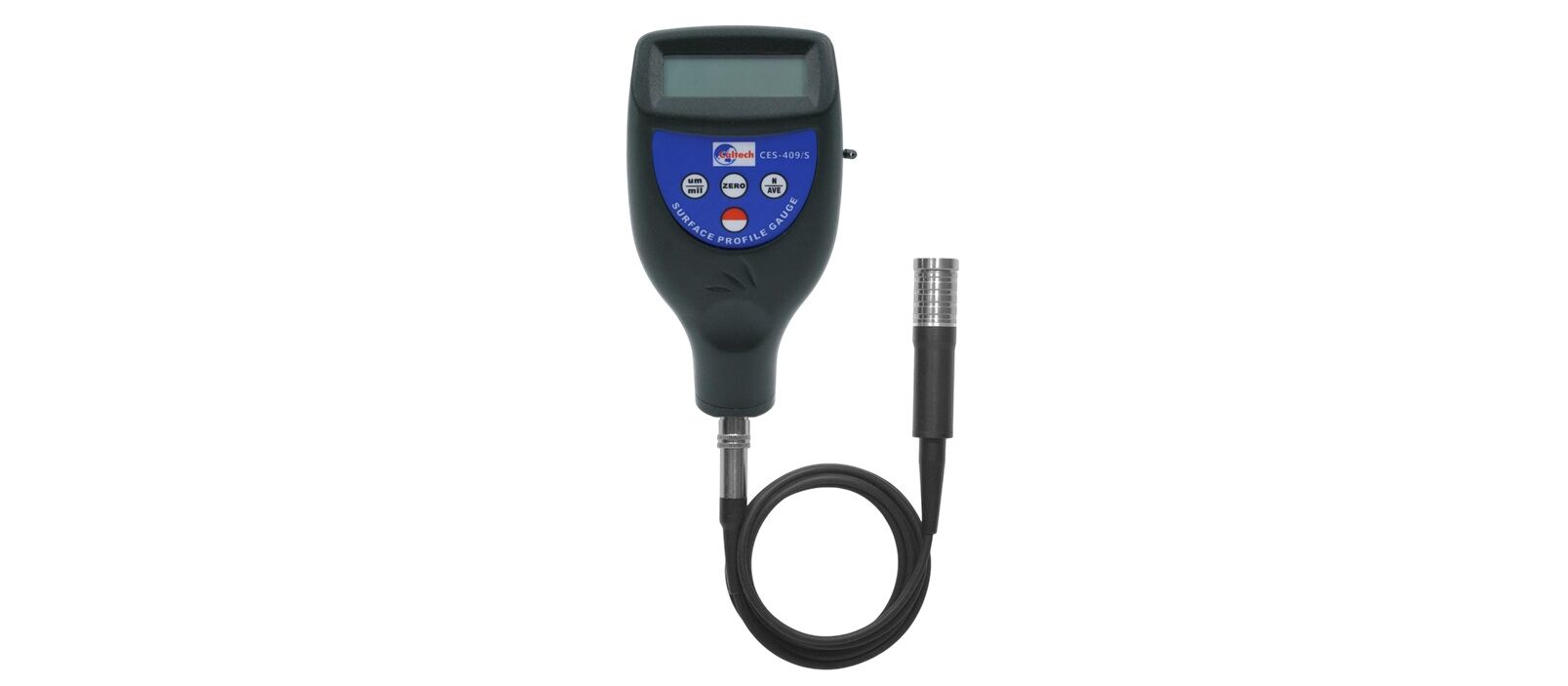

Caltech India is the manufacturer and supplier of CES 409/S Digital Surface Profile Gauge (with Separate Probe). This Digital Surface Profile Gauge is a precision instrument used to measure the peak-to-valley height of a surface, primarily for assessing surface roughness after blasting or other surface preparation techniques. CES 409/S Surface Profile Gage is a handheld gauge for fast and accurate measurement. It is widely used in field of blast cleaned surface measurement.
Digital Surface Profile Gage provides the very latest in surface profile measuring technology for measuring surface profile on either flat or curved surfaces. Fast, accurate and ideal for use on flat or curved surfaces, the CES 409/S Digital Surface Profile Gauge provides the very latest in surface profile measuring technology.
Features:
- User Friendly Gauge
- Large buttons ideal for gloved hands
- Easy to use menu structure
- Factory calibrated for immediate use
- Repeatable and reproducible measurements
- Accurate Surface Profile Measurements
- Measurement capability to ±5%
- User replaceable tough tungsten carbide tip, can be used for up to 20,000 surface profile readings
- Measures surface profiles up to 800μm (31.5mils)
- Integral and separate probe options to suit your application
- USB and Bluetooth data output
The correct way to measure Surface Profile is as below:
- Make sure probe is 90° to substrate to ensure accurate readings and calibrate the gauge on a glass zero tile.
- To take one spot measurement, take either 5 or 10 readings within a 100mm (4”) diameter area.
- The measurement displayed is either the average peak-to-valley height or the maximum reading of the 5 or 10 readings, depending on which measurement mode you have selected.
- To establish the average surface profile of an area, record 5 spot measurements for each 1m x 1m (3ft x 3ft) area.
The Caltech CES 409 surface profile meter is available in two different models: CES 409 and CES 409/S. Surface profile gauge are supplied with a glass zero plate, calibration test foils (nominal values 178µm (7.0mils)) and a Calibration Certificate.
Standards: ASTM D4417-B, IMO MSC.215(82), SANS 5772, US Navy NSI 009-32, US Navy PPI 63101-000 Standards
Ordering Information:
| CES 409/S – Digital Surface Profile Gauge (with Separate Probe) | |
| Display | LCD |
| Range | 0~800 μm |
| Accuracy | ±5% or ±5 µm, (whichever is the greater) |
| Resolution | 0.1 μm (When Measurement Value < 100 μm) / 1 μm (When Measurement Value ≥ 100 μm) |
| Principle | Inductance Type |
| Operating Conditions | Temperature: 0~50°C Humidity: <80%RH |
| Power Supply | 4×1.5V AAA (UM-4) Battery |
| Dimensions | 126x65x28mm |
| Weight | 280g |
| Standard | Main Unit |
| Packing List | Sensor Standard Sample Plate Carrying Case (B04) Operation Manual |
| Optional Accessories | USB Cable with Software Bluetooth Adapter with Software |
