Caltech India offers MT-660 Multi-mode Ultrasonic Thickness Gauge with through coating PE EE two modes width Measuring Instrument.

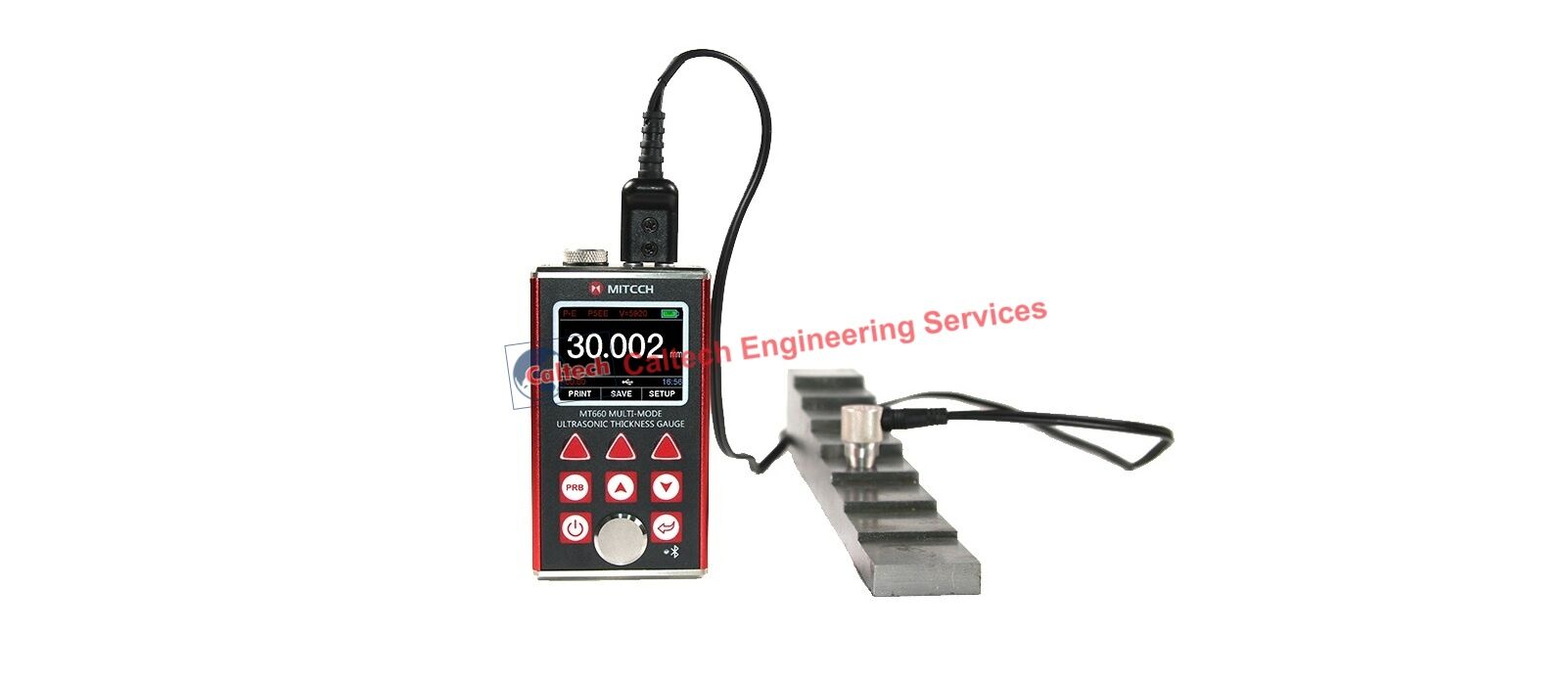

The model MT- 660 is a multi-mode ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. The Multi-mode feature of the gauge allows the user to toggle between pulse-echo mode (flow and pit detection), and echo-echo mode (eliminate paint or coating thickness)
Model MT-660 Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Transducer models are available for special application, including for coarse grain material and high temperature applications
Multi-mode: Pulse-Echo mode (P-E mode) and Echo-Echo mode (E-E mode). In Echo-Echo mode, it can test the wall thickness eliminating paint or coating thickness. Wide measuring range: Pulse-Echo mode: (0.65～600)mm (in Steel). Echo-Echo mode: (3～100)mm V-Path correction to compensate the nonlinearity of the probe. It has function for online transfer of the measured data to PC via USB.
Technical Specifications:
| Model | MT-660 |
|---|---|
| Display | 320×240 TFT color LCD screen, adjustable backlight brightness |
| Measuring Range | Two Working Modes: Pulse-Echo mode: (0.65～600)mm (in Steel). Echo-Echo mode: (3～100)mm |
| Sound Velocity Range | 1000~9999 m/s |
| Resolution | 0.1mm/0.01mm/0.001mm switchable |
| Accuracy | ±(0.04mm (≤10mm): ±0.4%H(>10mm) |
| Calibration | Zero Point Calibration, Two Point Calibration |
| Working Modes | Single Point Measurement, scan model measurement min/max measurement, differential measurement |
| Units | Metric / English unit selectable |
| Memory | Memory upto 100 files (upto 100 values for each file) of stored value |
| Communication Interface | Support Bluetooth and USB2.0 communication, the host program can be uploaded online |
| Data Printing | Capable of measuring Standard prtable Bluetooth thermal printer to print the measurement report |
| Power Supply | Two “AA” size, 1.5 volt alkaline batteries. 100 hours typical operating time (EL backlight off) |
| Automatic | It has auto screen standby, auto sleep, auto shutdown and other power saving functions. |
| Material | Aluminium –magnesium Alloy |
| Dimension | 120 x 67 x 31 mm |
| Net Weight | 317 g |
Transducer Selection:
| Model | Frequency MHz | Diameter mm | Measuring Range | Lower limit(work area) | Description |
|---|---|---|---|---|---|
| N02 | 2.5 | 14 | 3.0 mm – 300.0 mm (in Steel) | 20 mm | For thick, highly attenuating, or highly scattering materials |
| N05 | 5 | 10 | 1.2 mm – 230.0 mm (in Steel) | Ø20 mm × 3.0 mm | Normal Measurement |
| N05/90° | 5 | 10 | 1.2 mm – 230.0 mm (in Steel) | Ø20 mm × 3.0 mm | Normal Measurement |
| N07 | 7 | 6 | 0.75 mm – 80.0 mm (in Steel) | Ø15 mm × 2.0 mm | For thin pipe wall or small curvature pipe wall measurement |
| HT5 | 5 | 14 | 3.0 – 200.0mm (in Steel) | 30 mm | For high temperature (lower than 300 °C) measurement |
For further details please contact us or send email.
