Synonym : Ultrasonic Thickness Gauge, UT Gauge, Ultrasonic Thickness Meter, Pocket D Meter, Ultrasonic Thickness Measurement, Non Destructive Testing, NDT Instrument, UT Meter

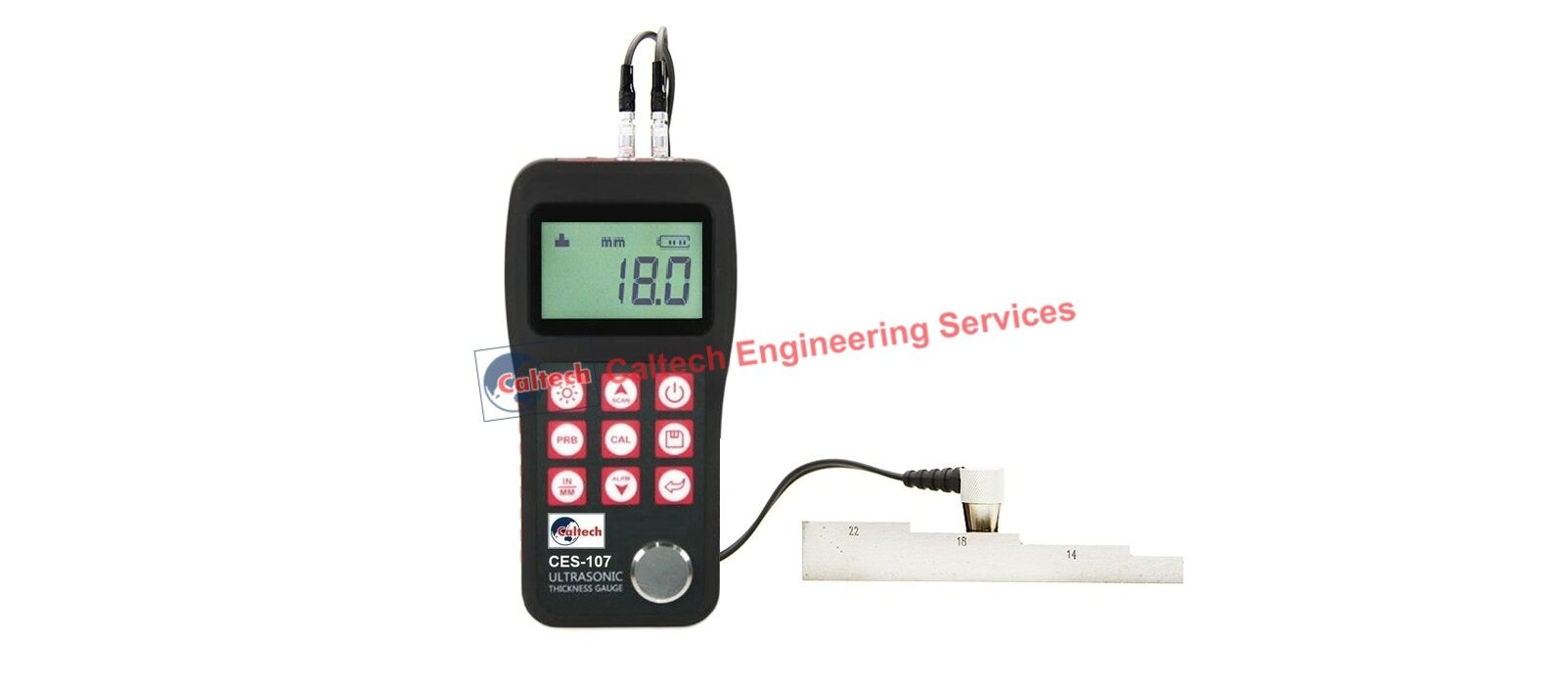

Caltech India is the manufacturer and supplier of CES 107 Ultrasonic Thickness Gauge. It is also known as D Meter for thickness measurement. It is suitable for non destructive testing of thickness measurement on variety of metallic and non-metallic materials. CES-107 Ultrasonic Thickness Gauge is best economical choice for rugged and excellent instrument in India. Caltech India is one of the leading Ultrasonic Thickness Gauge manufacturers providing quality D meters with nondestructive thickness measurement capabilities.
Ultrasonic thickness meter is operated on micro controller based principle. D Meter works on NDT (Non Destructive Testing) technique is simple and instant thickness measurements are possible. UT Meter has LCD 4.5 digit display for quick and best readability. It is useful for Steel, Mild Steel, Stainless Steel, Cast Steel, Cast Iron, Aluminum, Copper, Lead, Tin, Brass etc. D Meter is pocket sized instrument can be taken to any place like Work Shop, Off sites. It is supplied with standard probes and spare ultrasonic thickness probes of your choice. Ultrasonic probes has different sizes, shape and frequency based on applications.
Ultrasonic thickness meter ( Pocket D Meter ) adopts the theory of sound wave to measure a wide range of material, such as metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Most economical price ultrasonic thickness wall thickness measurements is possible very accurately using this handheld gauge.
Features:
- Two-Point Calibration
- Range 0.75mm to 300mm
- Pocket sized
- Feather touch pad
- Velocity or measurements
- Larger LCD display
- Built in calibration block
- Auto V path corrections
- Can be used by unskilled operator
- Operated on 9V Battery
- Auto sleep and auto power off function to conserve battery life
Applications:
Ultrasonic thickness gauge is recommended for fabrication shops, pipeline, coils, tubular, quality control, reactors, pressure vessels, maintenance, cylinders, rollers, corrosion and erosion survey, boilers, storage tanks, turbines, ship hulls, rolled products and sheets etc.
It is supplied in a carrying case, which includes ultrasonic thickness gauge, standard ultrasonic thickness probe, couplant oil bottle, instruction manual, and calibration certificate.
We also undertake repair and calibration of ultrasonic thickness meter or d meter. To know more about ultrasonic thickness gauge price in India and its availability. Contact Us.
Ordering Information:
| CES 107 – Ultrasonic Thickness Gauge | |
| Model | CES-107 |
| Measuring Range | 0.75-300mm (Depends on probes) |
| Working Frequency | (2.5-7) MHz |
| Probe Diameter | Standard N05 is 10mm |
| Min. Pipe Diameter | Φ15mm×2.0mm |
| Resolution | 0.1mm/0.01mm |
| Accuracy | ± (0.5%Thickness+0.04) mm, depends on probes |
| Display | 4.5 digits LCD with EL backlight |
| Single /Scan Mode | Four measurements readings per second for single point measurement, and ten per second for Scan Mode |
| Probe Calibration | Zero Calibration, Two-Point Calibration |
| Velocity Range | 1000-9999m/s |
| Unit | Metric/Imperial unit selectable |
| Language | English |
| Memory | up to 20 files (up to 99 values for each file) of stored values |
| Communication Port | USB |
| Data Printing | Yes |
| Power supply | Two “AA” size, 1.5 Volt alkaline batteries |
| Lower Power Comsumption | Y |
| Working Hours | 100h (EL backlight off). |
| Operating Temperature | -20℃-+60℃ |
| Relative Huminity | ≤90% |
| Appearance | ABS Plastic |
| Outline | 150mm×74mm×32 mm |
| Gross Weight | 1.5 KG |
| PC Datapro Software | Yes |
