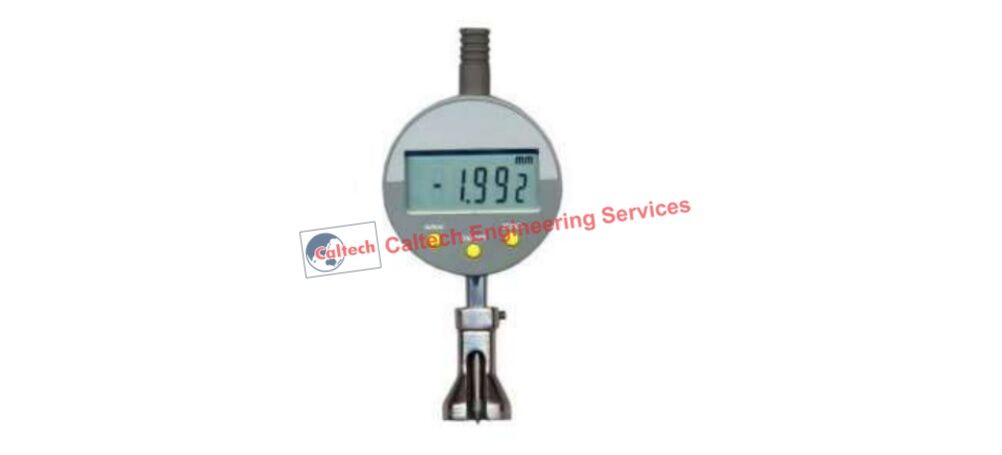

Caltech India is the leading manufacturer and supplier of CES 125 Digital Corrosion Pit Gauge. It is a precision measuring instrument designed to accurately determine the depth of corrosion pits, surface cavities, and localized material loss on metal components. It is also known as Digital Corrosion Depth Gauge. It will allow to measure the peak to valley height of corroded surface. Measurement can be carried accurately to the level of micron. Corrosion Pit Gauge can be used on most of the surfaces for determination of pit in corroded surfaces, corrosion coupons, corroded pipes, plant equipment’s. It is widely used in inspection, maintenance, and quality control applications to assess corrosion damage and ensure structural integrity. Buy corrosion pit gauge from us for better resolution and precise measurements.
The gauge is initially set to zero with the glass zero plate and the foot is then placed on the corroded profile. The foot sits on top of the peaks and the sharp stylus travels to the bottom of the valley, allowing the gauge to display the peak to valley height. A number of measurement can be made and the average taken. The corrosion pit gauge is used to measure the effects of corrosion i.e. pitting and cavity depth etc.
Digital Pitting Depth Meter can be used with measurement resolution of 1 micron and precision measurements are possible even at critical locations. The instrument is supplied with calibration certificate traceable to National Standards as per ISO 9001:2000 norms. It is highly recommended for laboratories, testing & inspection for pitting corrosion, weld undercut, pipeline, painting contractors, cavity measurements and evaluations. Supplied in carrying case with glass plate for zero setting and battery fitted. Contact us for details.
Key Features:
- High-resolution digital display for accurate pit depth measurement
- Precision probe or needle tip for accessing small pits and cavities
- Rugged and lightweight design for field use
- Zero setting and calibration function
- Measurement in millimeters
- Battery-operated with long service life
Applications:
- Oil & gas pipelines and storage tanks
- Marine structures and ship hull inspection
- Power plants and pressure vessels
- Automotive and aerospace components
- Industrial equipment maintenance
- Structural steel and bridges, etc
Advantages:
- Fast and reliable corrosion assessment
- Improves preventive maintenance planning
- Reduces risk of structural failure
- Easy to operate with minimal training
Ordering Information:
| CES 125/1 | Digital Corrosion Pit Gauge (Range: 0-3mm Res: 1µm) |
| CES 125/2 | Digital Corrosion Pit Gauge (Range: 0-5mm Res: 1µm) |
| CES 125/3 | Digital Corrosion Pit Gauge (Range: 0-10mm Res: 1µm) |
