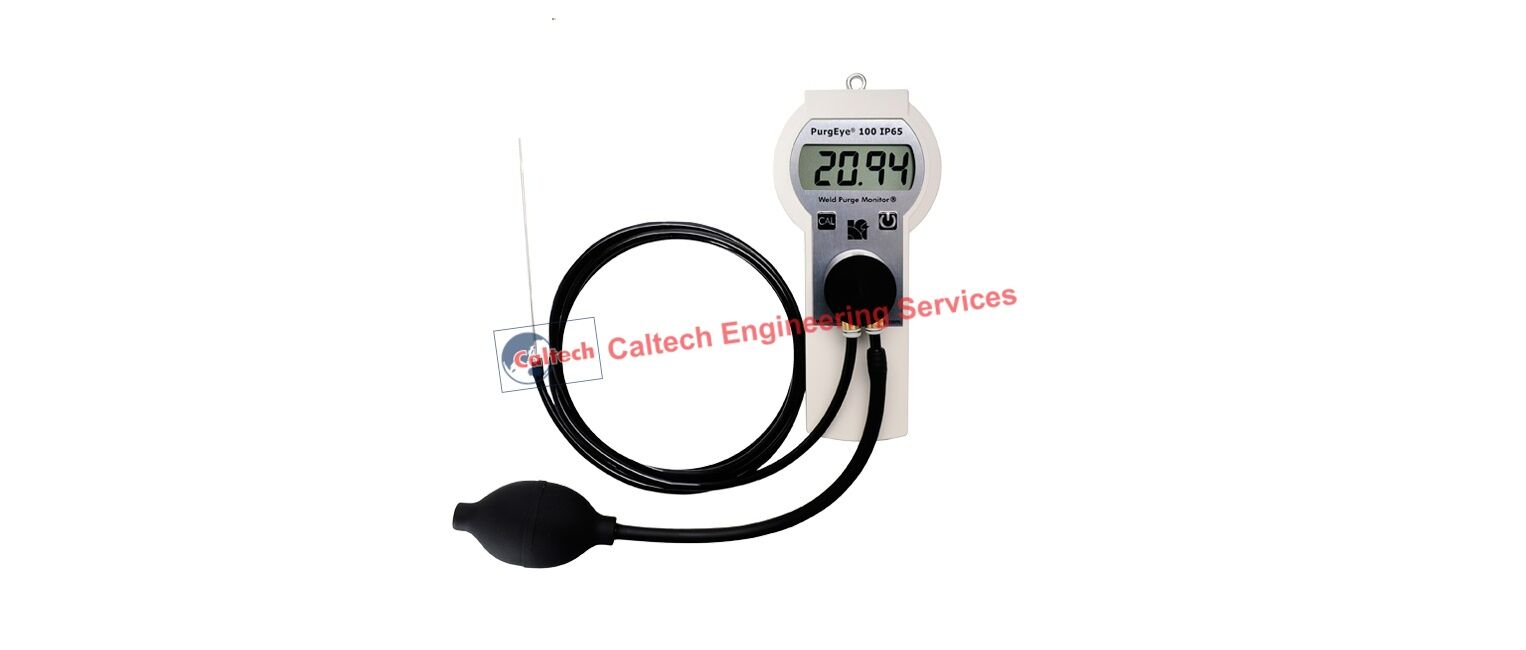

Caltech India offers Argweld PurgEye 100 Hand Held IP65 Weld Purge Monitor.
The Argweld PurgEye 100 IP65 Sealed Dustproof and Waterproof Weld Purge Monitor with innovative push button auto calibration, enlarged screen, low sensor indicator, tripod mount, sleep mode, vacuum sealed leak-tight probe assembly, wrist or neck strap, rubber housing protector and so much more.
The PurgEye 100 now has a dustproof and waterproof outer case that prevents the ingress of dust or moisture even to the extent of having hard water spray directed against it.
With tungsten inert gas welding (gas tungsten arc welding) of important joints in stainless steels and other reactive metals, before commencing the weld, it is essential to know that the oxygen content in the welding volume has been reduced to a satisfactorily low level. Argweld PurgEye 100 IP65 Weld Purge Monitors will carry out this task for you indicating oxygen levels down to 100 ppm. For full technical information, use the tabs above.
Weld Purge Monitors are used for Stainless and Duplex Steels, Corrosion Resistant Alloys, Titanium and Exotic Metals.
Weld Purge Monitors have been specifically designed for excellent weld purging conditions creating the best oxide-free zero color welds. Oxygen monitors for welding purposes, including gas analysers (gas analyzers), oxygen instruments or oxygen indicators are not sufficient to provide good clean welds.
Argweld PurgEye 100 IP65 has additional features that place this Weld Purge Monitor way ahead in the field of Weld Purge Monitoring.
Hi-tech developments on the Argweld PurgEye 100 IP65 Weld Purge Monitor include:
- IP65 dustproof and waterproof accredited
- Vacuum brazed leak tight probe assembly
- Push button “Auto Calibration” feature
- Low battery indicator and low sensor indicator
- Enlarged screen and large size digits
- Tripod mount (for fixed and gorilla tripods)
- Automatic sleep mode when not in use
- Leak tight quick connect/disconnect fittings for gas purge tubing
- Protective rubber cover (optional)
- More robust carry/presentation storage case
The innovative Push Button Auto Calibration facility on the front of the instrument allows the user to calibrate at atmospheric level and again at the lowest oxygen reading for increased accuracy.
With tungsten inert gas welding (gas tungsten arc welding) of important joints in stainless steels and other reactive metals, before commencing the weld, it is essential to know that the oxygen content in the welding volume has been reduced to a satisfactorily low level.
Argweld PurgEye 100 IP65 Weld Purge Monitors will carry out this task for you indicating oxygen levels down to 100 ppm.This very affordable hand-held meter is a ‘must’ for every construction site and pipework fabrication facility around the world.
Argweld PurgEye 100 IP65 Weld Purge Monitors can be used with any pipe welding system or any weld purging chamber or weld purging enclosure.
The sensor is easy to replace and calibrate yourself using the advanced calibration features of the Argweld PurgEye 100 IP65 and the specially written algorithm that provides extreme accuracy at 0% where it is especially important for weld purging.
Argweld PurgEye 100 IP65 Weld Purge Monitors can be used as a continuously reading instrument with free flow of the purge exhaust gas across the sensor or as a sampling instrument with the hand vacuum pump extracting samples from the purged volume, as and when desired.
Supplied with :
2 x AA batteries
Leak tight stainless steel probe for sampling
2 meters of gas sampling hose
Sampling bulb (vacuum pump)
Carry strap for neck or wrist
User instruction booklet
Storage and presentation case
Calibration certificate for the purpose of Quality Control Procedures and Management Systems
Main Technical Parameters:
| Measuring Range: | 20.94% down to 100 ppm oxygen (100 ppm to atmosphere) |
| Size: | 94 mm (top width) 58.5 mm (handle width) 199 mm high (from bottom to top of eyelet) 63 mm deep (with flow adaptor) 44 mm deep (without flow adaptor) |
| Power: | Battery type 2 x AA (included) |
| Scale: | LCD (Liquid crystal display) 24 mm (Old Argweld® Weld Purge Monitor® Mark V Model 17 mm) |
| Weight kg | 0.870 kg |
Ordering Information:
| PurgEye 100 | Argweld PurgEye 100 Hand Held IP65 Weld Purge Monitor |
