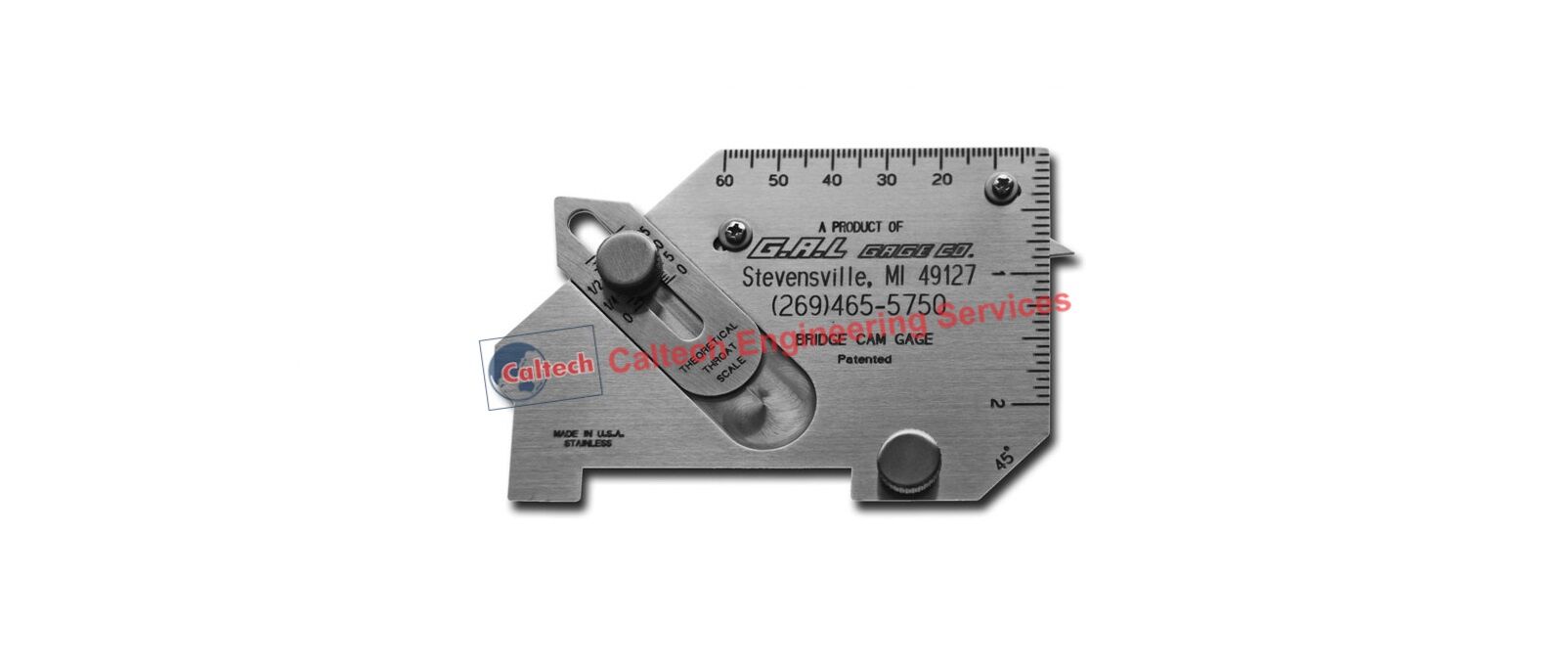

Bridge Cam Gauge

Caltech India offers Bridge Cam Gage for measurements that are possible in either inches or millimeters: Angle of Preparation, Excess Weld Metal, Depth of Undercut, Depth of Pitting, Weld Throat Size, and more. Bridge Cam Gauge is also known as Universal Welding Gauge. GAL Gage Co – USA manufactured Welding Gauge is made of stainless steel and sturdy to measure undercut depth or crown height scale can be read to 1/32 inch.

The Bridge Cam Welding Gauge by GAL Gage Company is one of our most versatile gauges available. With it, you can perform several different types of measurements of welds in both inches or millimeters.

With this one, versatile tool, you can measure:

• Angle of preparation
• Outside misalignment
• Weld reinforcement
• Fillet Weld throat dimension
• Fillet Weld leg length and undercuts and pits

To measure the angle of preparation of this pipe, place the legs of the gauge squarely on the surface of the pipe and lower the rotating segment until it rests squarely on the bevel. This bevel angle measures approximately 42 degrees.

To easily measure outside misalignment, rest the legs of the gauge squarely on one surface of the pipe and lower the tip until it comes in contact the other pipe. The amount of misalignment is then read from this scale. This misalignment measures 3/32 of one inch or 2.3 mm

To measure weld reinforcement, lower the legs of the gauge to the surface of the plate. Then, using the tip, place it at the highest point on the weld. The Weld reinforcement dimension is again read from this scale. This weld reinforcement measures 1/8 of one inch or approx. 3.1 mm

Now lets measure the actual fillet weld throat dimension using the miter slide on the Bridge Cam gauge. First, extend the slide as far as it will go, place the tip of the slide on the face of the weld and lower the gauge until it squarely contacts the surface of both plates. The actual throat dimension is then read from this scale. It reads just under 3/8 of one inch, or approximately 9 millimeters. Turn the gauge over and the scale on the back will also give you the theoretical weld size. In this case, 1/2 of one inch.

You can also use the slide as a go-nogo gauge. Simply remove the locking screw, flip the slide over to the theoretical side and reassemble the gauge. Use the increments to set the slide to match the leg length. In this case a 1/2 inch weld is specified. Set the slide to 1/2 inch and lock the screw. The gauge indicates this is an acceptable amount of weld.

To measure fillet weld leg length, rest the legs of the gauge on the surface of the plate, then rotate the tip, to the toe of the weld. The actual leg length is read from this scale. This measurement should read one half of one inch or approx. 12.7 mm.

And finally, to measure undercuts or pits, place the legs of the gauge squarely on the surface of the plate and lower the tip into the undercut or pit. The amount of undercut is read from this scale. This pit reads 1/16 of one inch or approx. 1.6 mm.

This Bridge Cam gauge is available individually from GAL GAGE COMPANY or it is included in our complete set of gauges available in our Briefcase Large Tool Kit.

Caltech India is a leading bridge cam gauge suppliers. To know about bridge cam gauge price, contact us.

The following measurements are possible either in inches or millimeters:

• Angle of preparation, 0° to 60°
• Excess weld metal (capping size)
• Depth of undercut
• Depth of pitting
• Fillet weld throat size
• Fillet weld length
• Misalignment (high-low)
• General linear measurements up to 60 mm or 2 inches.
• Bridge Cam Gauge / TWI Welding Gauge / Cambridge Gauge / Universal Welding Gauges
• Supplied in a case with instructions

Ordering Information:

GAL-4

Bridge Cam Gauge
